511
2. Enable PoE on GigabitEthernet 1/0/11 and set the maximum power of the port to 12950
milliwatts:
a. Click the Setup tab.
b. On the tab, click to select port GigabitEthernet 1/0/11 from the chassis front panel, select
Enable from the Power State list, and select the box before Power Max and enter 12950.
c. Click Apply.

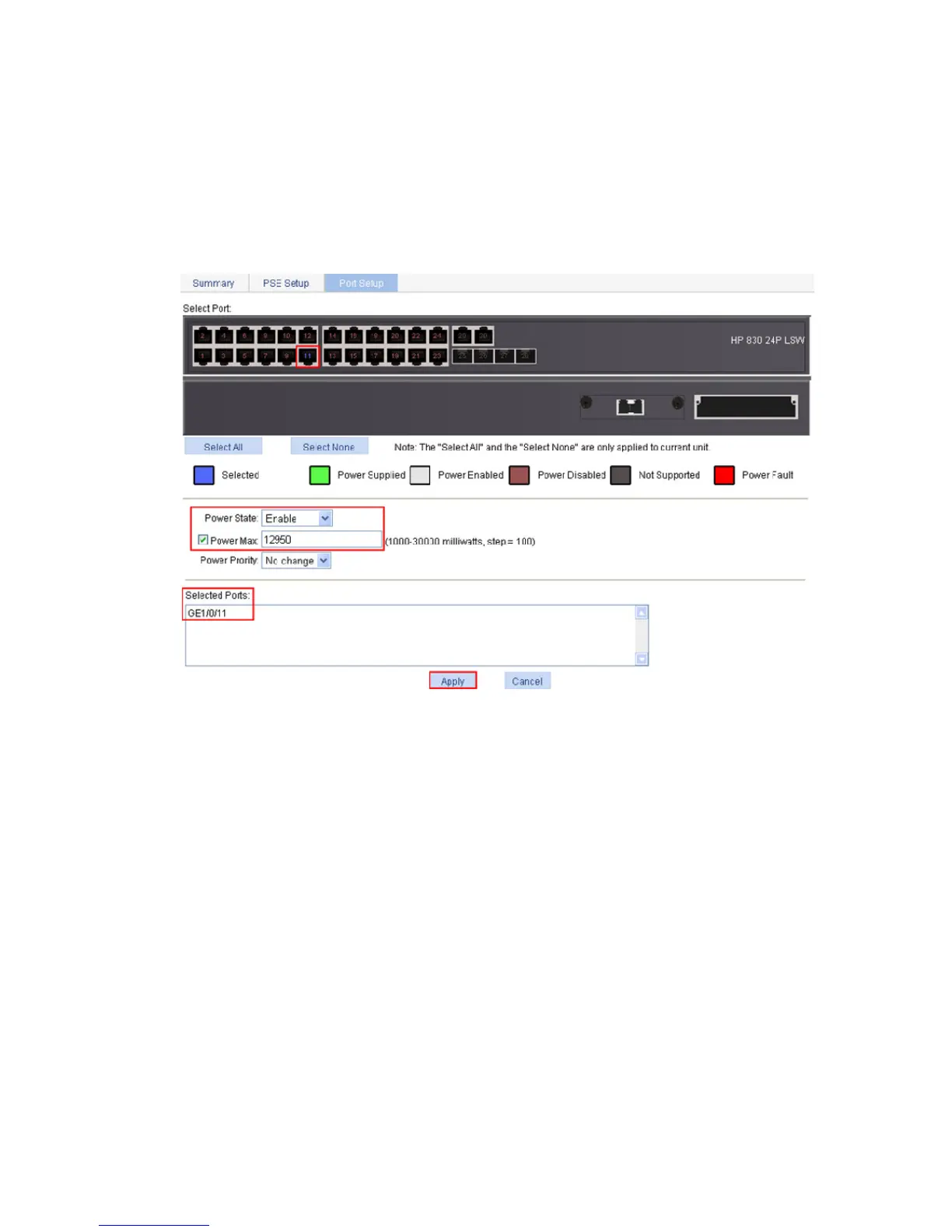

Figure 517 Configuring the PoE port supplying power to AP
After the configuration takes effect, the IP telephones and AP are powered and can operate correctly.
