IAI Rcon User Manual

3.8 I/O Signals
A3-100
ME0384-4A
Chapter 3 Gateway Unit
Specifications Section

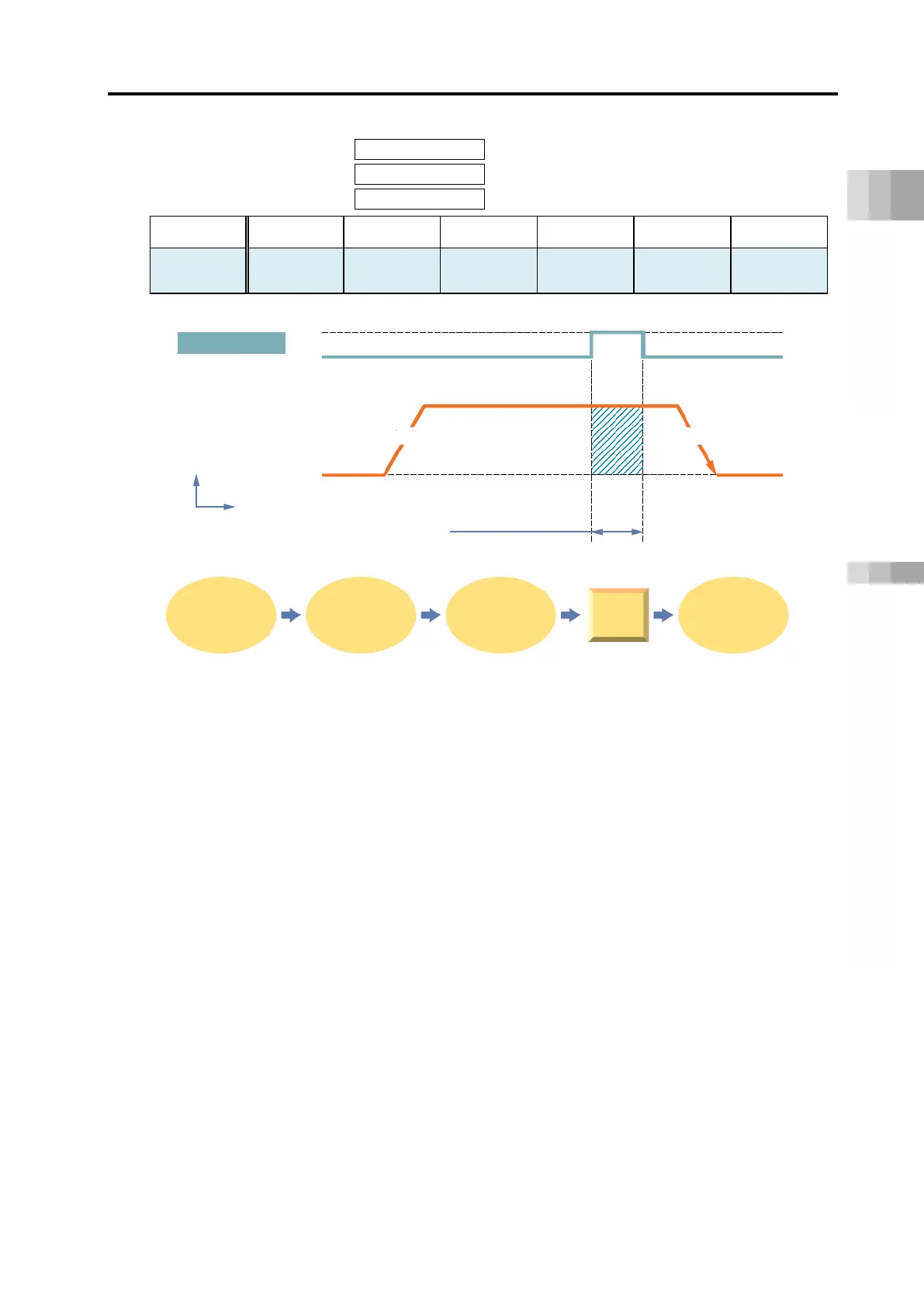

[9] Zone 1 (ZONE1) PLC input signal
Zone 2 (ZONE2) PLC input signal
Position zone (PZONE) PLC input signal
Operation mode Direct numerical control Simple direct Positioner 1 Positioner 2 Positioner 3 Positioner 5
○: Y
×
: N
△
(PZONE not available)
○ ○ ○
△
(ZONE 1 only)
△
(PZONE not available)
The signal turns ON while the actuator is passing through a specified position (zone range) or
while the actuator is stopped.
There are two types of zone signals.
They can judge pass/fail of the completion position at push-motion completion, set the
continuous operation range in pitch feed, perform operation interlock of other devices within the
setting range, and so on.
Time
Zone signal output setting range
Positioning
complete
signal output
Travel
complete
When it leaves the
set range, the zone
signal turns OFF
When it enters the
set range, it outputs
a zone signal
Position 1 input
start signal input
(travel start)
Speed
Stop status
Acceleration
Deceleration
Zone output signal
ON
OFF
(1)
(2)
(3)
(4) (5)
(1)
(2)
(3)
(4)
(5)
