3.9 Gateway Parameter Configuration Tool
A3-158
ME0384-4A
Item Description
Output voltage
This power supply can vary the output voltage according to the load.
The output voltage monitoring value changes, but this is not abnormal.
Voltage of auxiliary
winding
Control power supply voltage inside the power supply unit. As with the
output voltage, it changes according to the load on the output voltage
Output current Instantaneous value of output current.
Peak hold current Peak value of output current.
Load factor
Ratio of integral value of output current and rated output current. If this
value exceeds 100%, the output voltage is cut off as an overload error.
FAN rotation speed It is the speed of the fan rotation.
PCB temperature
Internal temperature: Temperature in the vicinity of the output capacitor
on the secondary side.
•
Power supply unit connection retry times
: Sets the number of retries when a communication
error occurs.
• Waiting time for initialization : Sets additional wait time until the driver unit starts
internal process communication internal communication.

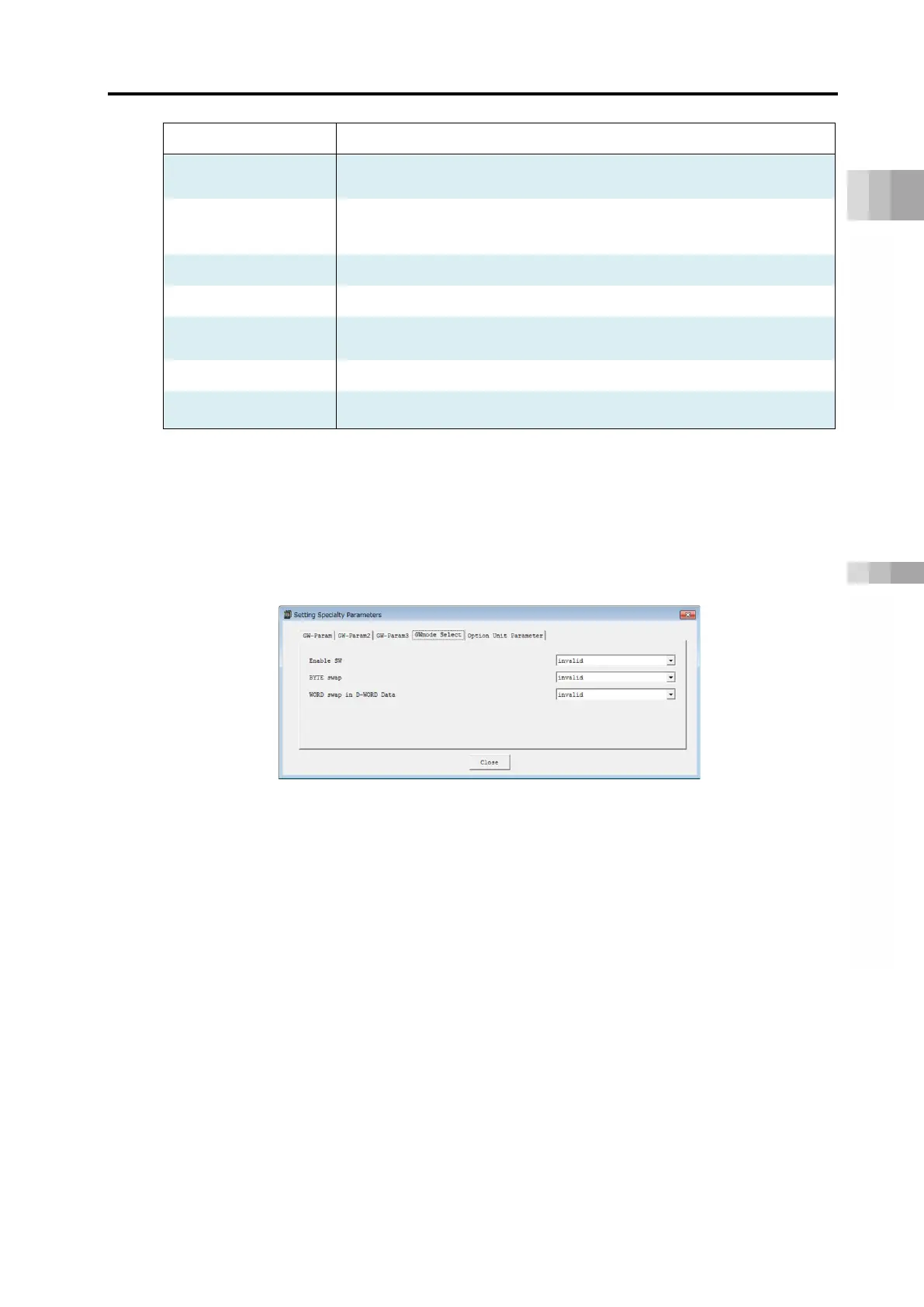

[GW mode selection]
• Enable SW : Selects whether to enable/disable the enable switch of the
T P.
• BYTE swap : Set the byte swap. [See "Byte swap" on page A3-159]
• WORD swap in D-WORD Data : Sets whether the W word size data is to be swapped in
word size. [See "Word swap in D-WORD Data" on page
A3-159]
To Next Page
