3.9 Gateway Parameter Configuration Tool
A3-171
ME0384-4A
Specifications Section
Chapter 3 Gateway Unit
[When Connecting EC Connection Unit]
When the EC connection unit is connected, set the number of EC connection units to be
connected in “Option units”.
The axis numbers for the EC connection unit should be assigned after each driver unit (RCON-
PC/PCF/AC/DC/SC) and SCON-CB. Also, no other unit can be moved or added after the EC
connection unit.
The EC connection unit can be connected for four units at maximum, however, it cannot be
connected if the top axis number exceeds 0 to 15.
Caution
If the actual number of connected axes of the RCON system does not match the
number of axes set and transferred in the gateway parameter configuration tool, the PC
software cannot be connected.
Set and transfer the gateway parameters suitably according to the actual unit
configuration and the number of connected axes.

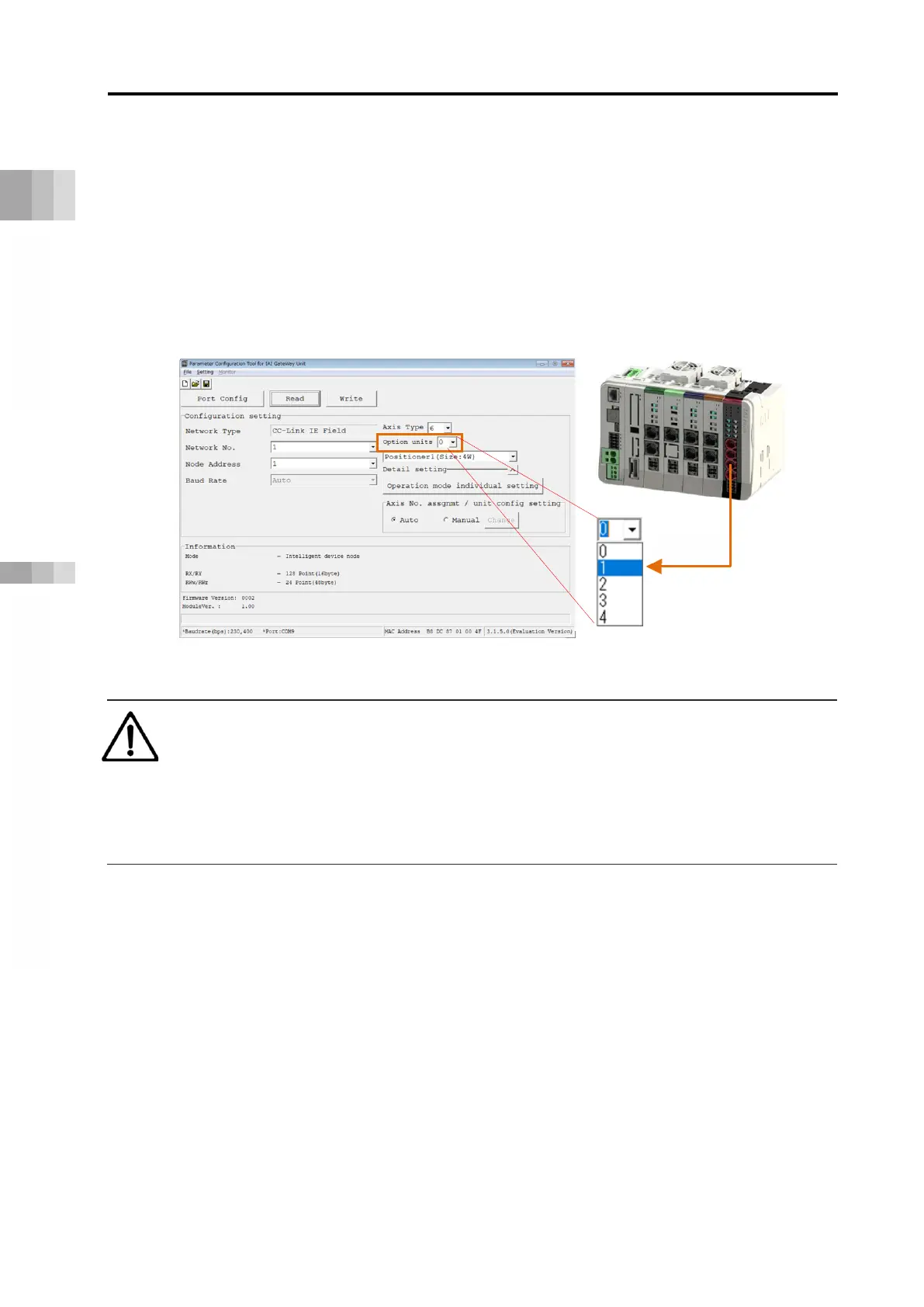

Set the number of EC
connection units to be
connected
1 Unit
