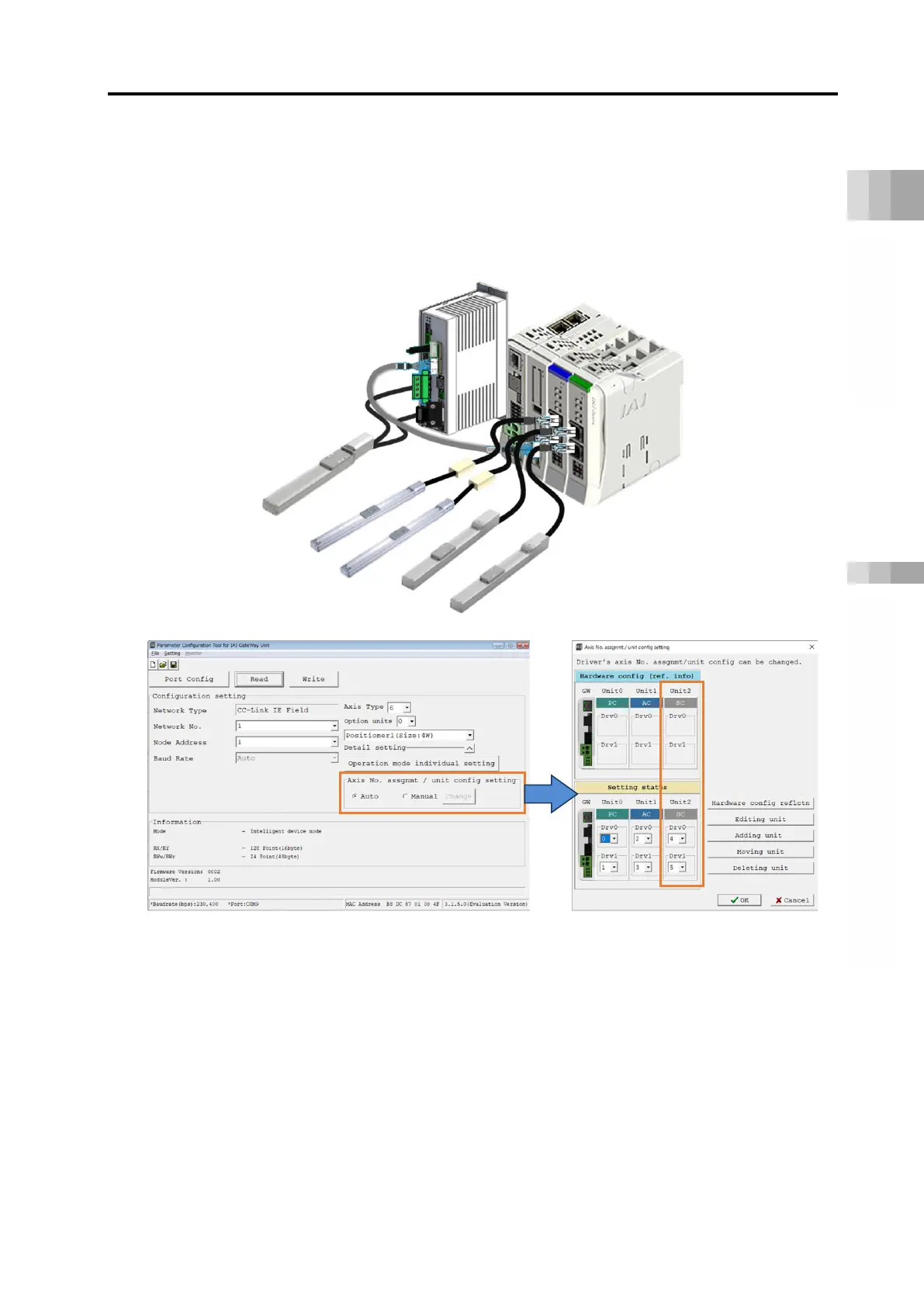

3.9 Gateway Param
eter
Configurati
on
T
ool
A3-
170
ME0384-4A
Chapter 3 Gateway Unit
Specifications Sect
ion
[When connect
ing SCON
-
CB]
When SCON
-
CB is c
onnected using an ext
ension unit (RCON
-
EXT), set “Axis N
o.
a
ssignment /
u
nit
configuration set
ting” to “Auto”, and SCON
-
CB
should be assigned t
o the last of all the driver
units.
Also, no other driv
er unit (RCON
-
PC/
PCF/AC/DC/S
C) can be moved or adde
d after SCON
-
CB.
SCON
-
CB
272
