4.1 How to Use the Gateway Parameter Configuration Tool
B4-12
ME0384-4A
Chapter 4 Network Configuration
(4) As shown in the figure on the right,
if the parameters in the gateway
unit are displayed on the
"Parameter configuration tool" main
screen, communication has been
established.
(5) If "Communication port open error"
screen is displayed when importing
parameters, communication
connection has failed.
[Causes of communication connection failure]
● Mismatched communication port
●
Disconnected communication cable
● Connection problem of
communication cable connector
● Gateway unit side, PC side malfunction
● PC software double startup
may be possible causes.

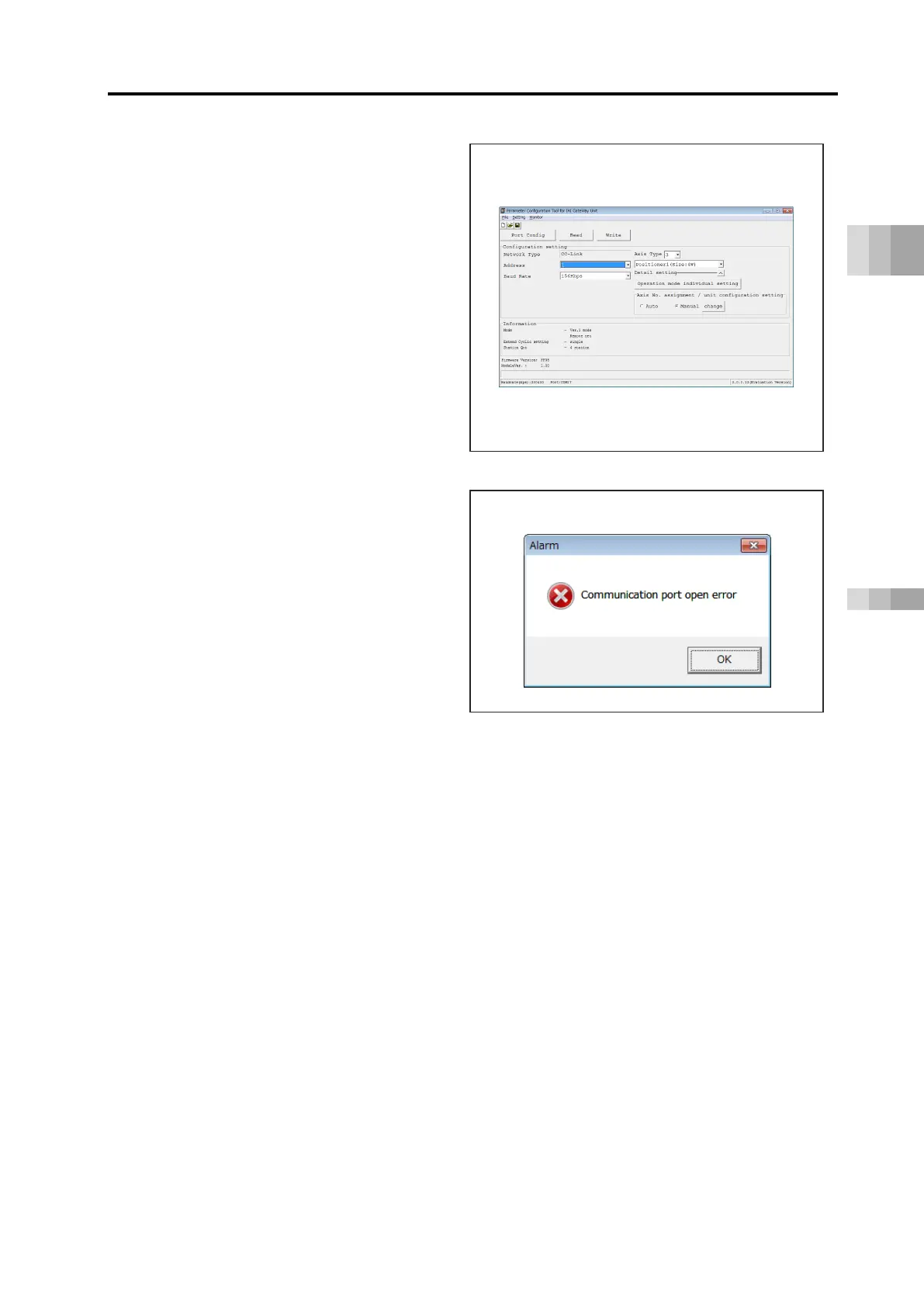

"Parameter configuration tool" main screen
"Communication port open error" screen
