IAI Rcon User Manual

4.2 Master Side Setting
B4-35
ME0384-4A
Startup Section
Chapter 4 Network Configuration

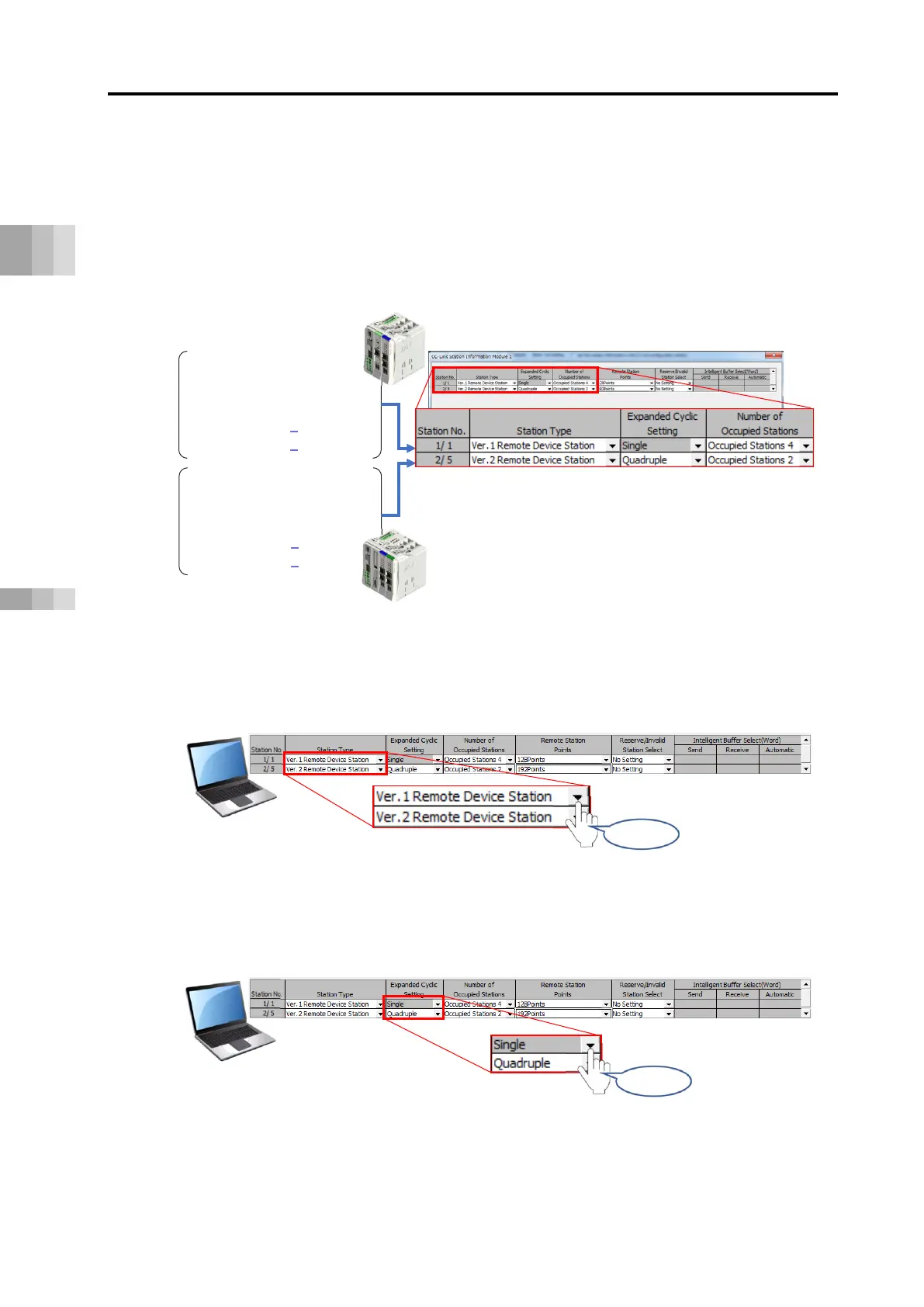

Set the "CC-Link station information".
Set the occupancy information obtained based on the example.
The RCON system Unit 1 is set to "number of units / station number: 1/1" and the RCON
system Unit 2 to "number of units / station number → 2/5".
(1) Select the "station type".
Select "Ver.1 remote device station" for "number of units / station number: 1/1" and "Ver.2
remote device station" for "number of units / station number: 2/5".
(2) Perform the "extended cyclic setting".
"Number of units / station number: 1/1" is fixed at "Single". Select "Quadruple" for the
"number of units / station number: 2/5".
"CC
-
Link station information" screen
Selection
"CC
-Link station information" screen
Selection
Occupancy information
By station type : Ver.1
Remote device station
Extended cyclic : 1x
Number of occupied stations : 4 stations occupied
RCON System Unit 1
Occupancy information
By station type : Ver.2
Remote device station
Extended cyclic : 4x
Number of occupied stations : 2 stations occupied
RCON System Unit 2
"CC-Link station information" screen
(2)
(3)
(1)
9
