4.2 Master Side Setting
B4-40
ME0384-4A
Chapter 4 Network Configuration
Startup Section
[Confirming CC-Link communication status]
Confirm the communication between the CC-Link master unit and the RCON system.
Check the communication status in the RCON system.

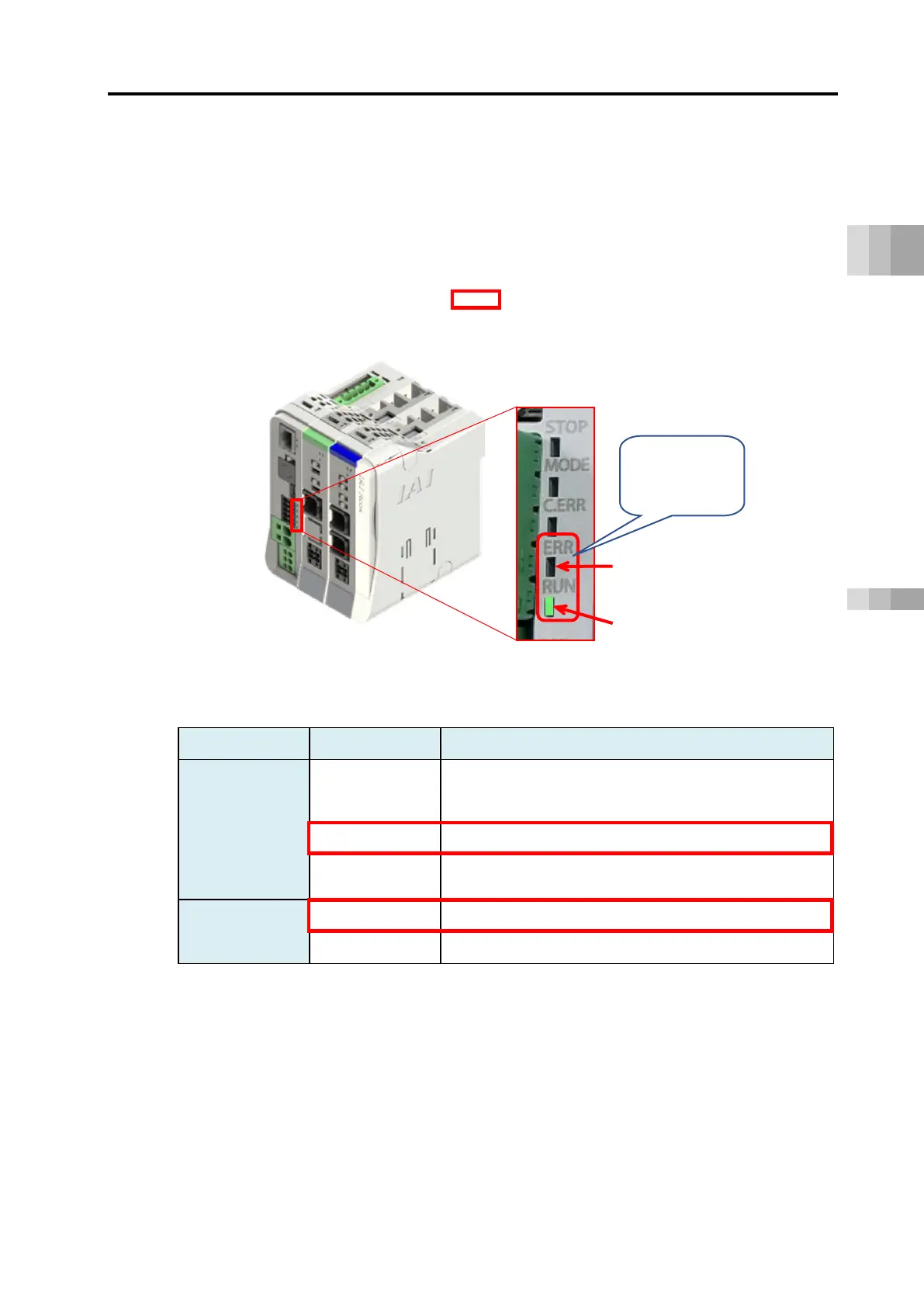

Check the LED (ERR and RUN) status (color) on the front of the gateway unit to confirm the
status (normal communication) of the part.
Status LED Display status Definition of display
ERR
■
Lit
・Error status
・Time between power-on or software reset to the end
of CC-Link initialization
■
Light off ・Normal communication
 (0.4 s)
・The station number or communication speed setting
changed during communication
RUN
■
Lit ・In communication
■
Light off ・When not in communication
 indicates blinking. The value in ( ) is the blinking cycle.
RUN
ERR
RCON System
[LED status]
Communication
is normal
