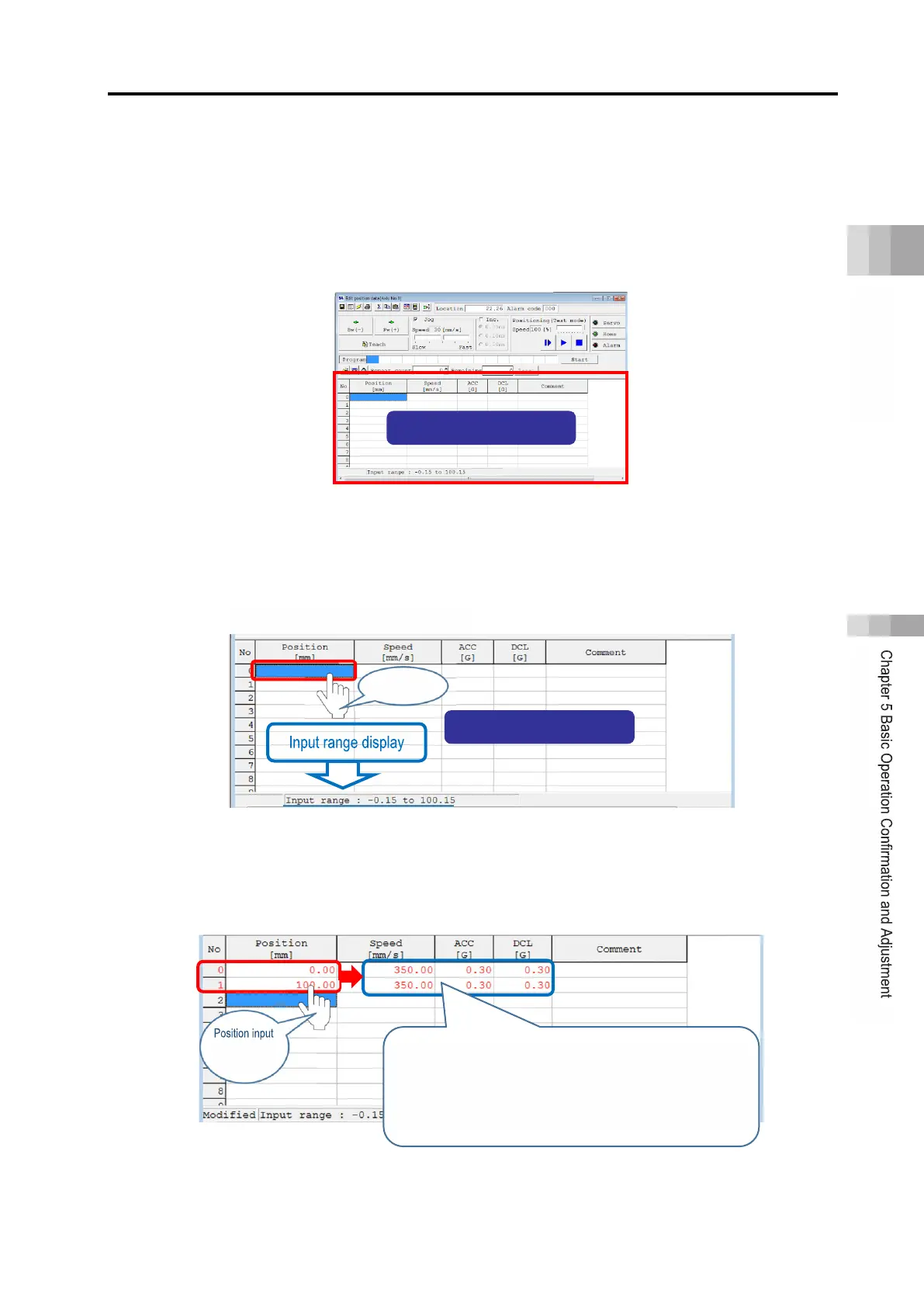

5.1 Operation Confirmation with PC Software
B5-8
ME0384-4A
Moves to the registered position.
[Registering target position]
(1) In the position table input section, enter the "position [mm]" to which the movable part of the
actuator is to travel.
(2) Move the cursor to the position No. "Position [mm]" to be entered in the "position table input
section". The range of values that can be entered is displayed at the bottom of the "position
table input section".
(3) Enter any coordinate value within the range of the values displayed in the "input range" and
press [Enter] on your PC. (In the following example, 0 mm is entered in position No. 0 and
100 mm in position No. 1.)
"Edit position data" screen
Position table input section
Click
Position table input section
"Position data input section" screen
When position + [Enter] is entered, the actuator rated values
registered in the controller are automatically input in the
speed, acceleration, deceleration and other fields.
To make changes, move the cursor and enter the value. Each
input range is displayed at the bottom of the screen.
+
