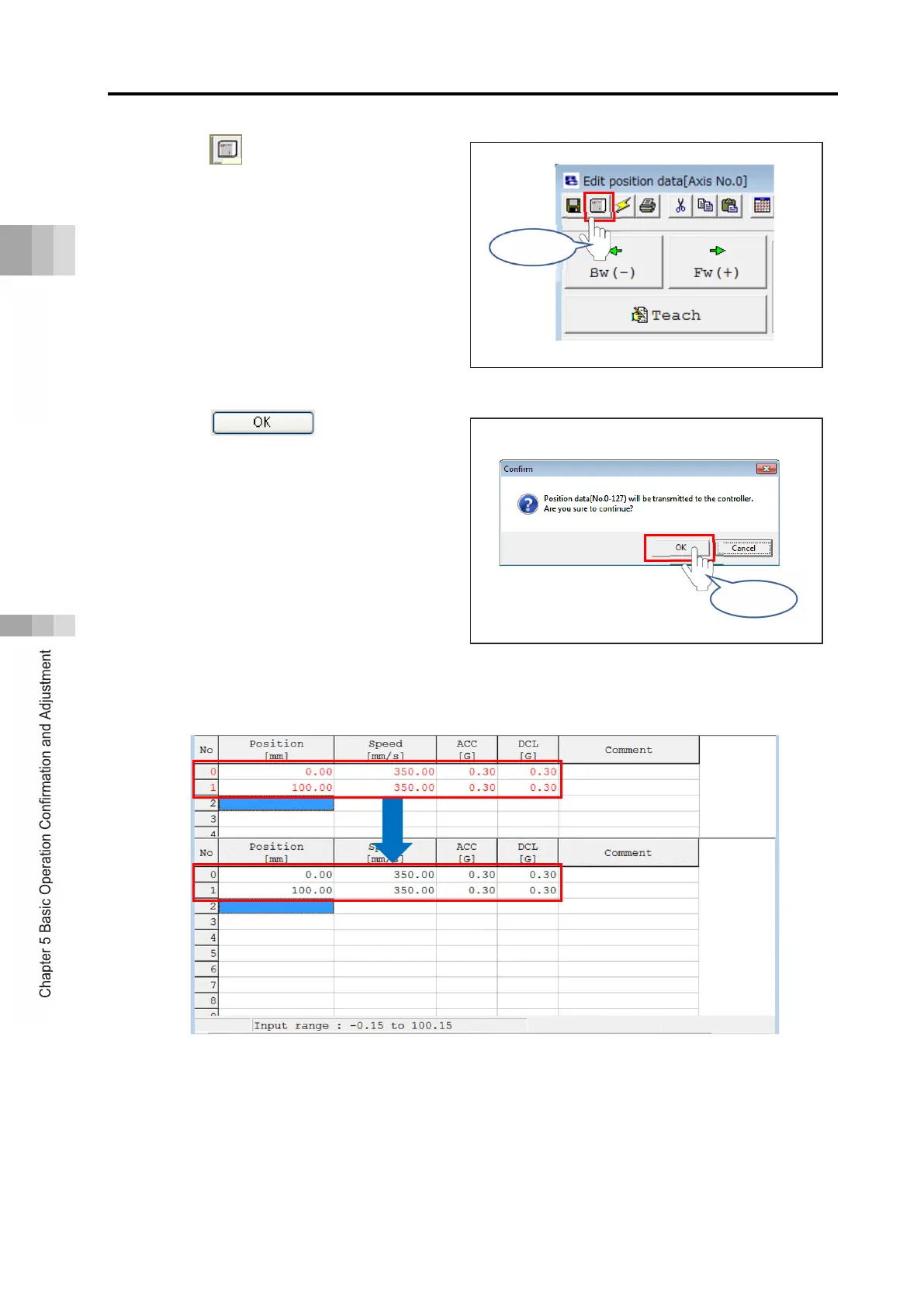

5.1 Operation Confirmat
ion with PC S
oftware
B5-9
ME0384-4A
Startup Section
(4) Click
(T
ransfer to controller) i
n
the upper left c
orner of the edit posit
ion
data screen.
(5) Click
when t
he
"
Confirm
" screen is
displayed
.
When the controller trans
fer of posit
ion table data is compl
eted, the number ent
ered changes
from red to black.
Click
Click
493
