2.5 Connection Diagrams
A2-42
ME0384-4A
Chapter 2 System Configuration and Specifications

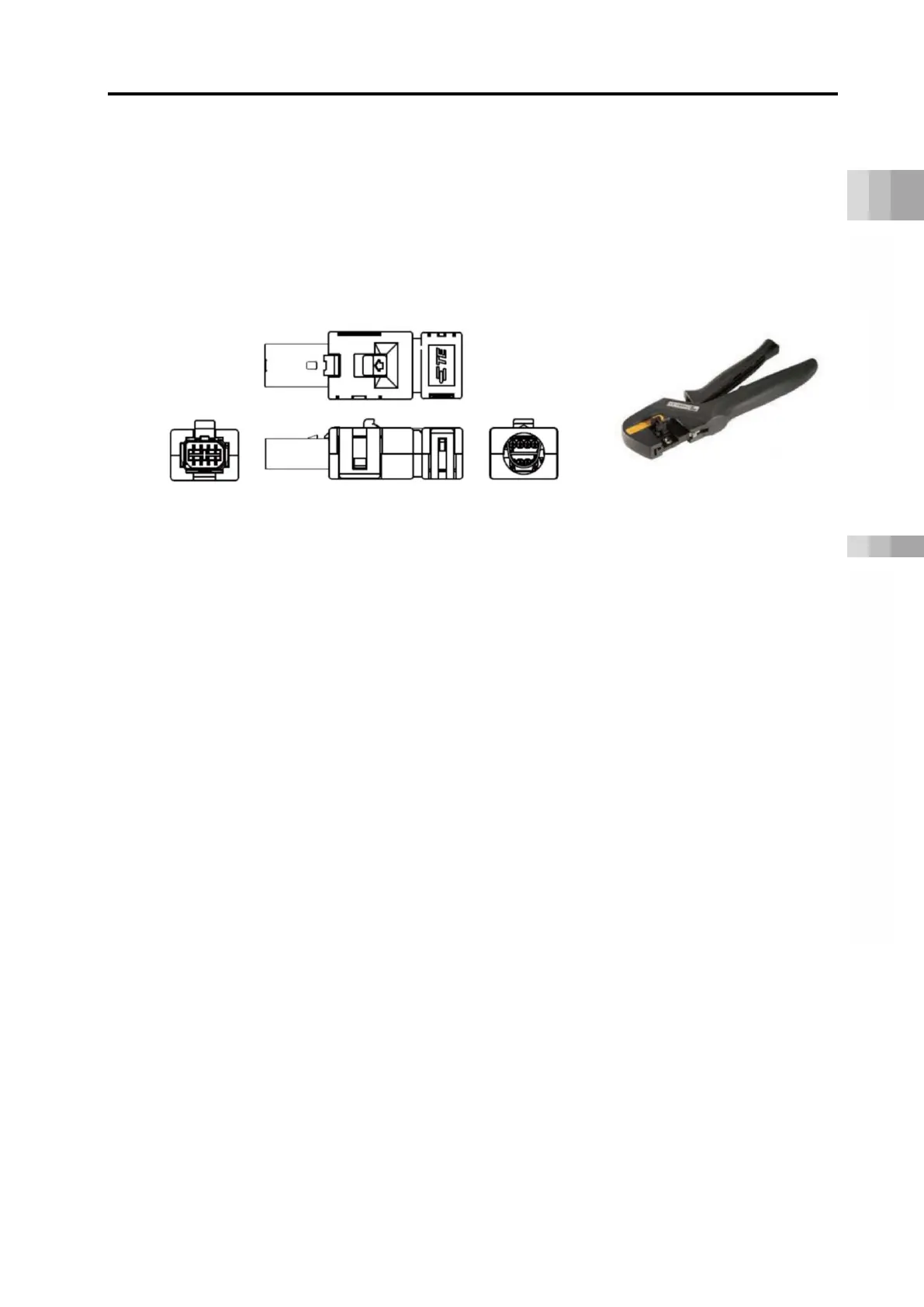

[Driver Stop Connector (Cable Side)] (To be prepared by user)
There is the following model as a connector itself on the cable side when building without using
the I/O cable for the driver stop feature.
Manufacturer: Tyco Electronics
Model Code: 2013595 (Soldering Type) * There is cold-welding type also available.
it is necessary to have a cramping tool 2229737-1 (for both soldering and cold-
welding types).
-1
