2.5 Connection Diagrams
A2-41
ME0384-4A
Chapter 2 System Configuration and Specifications

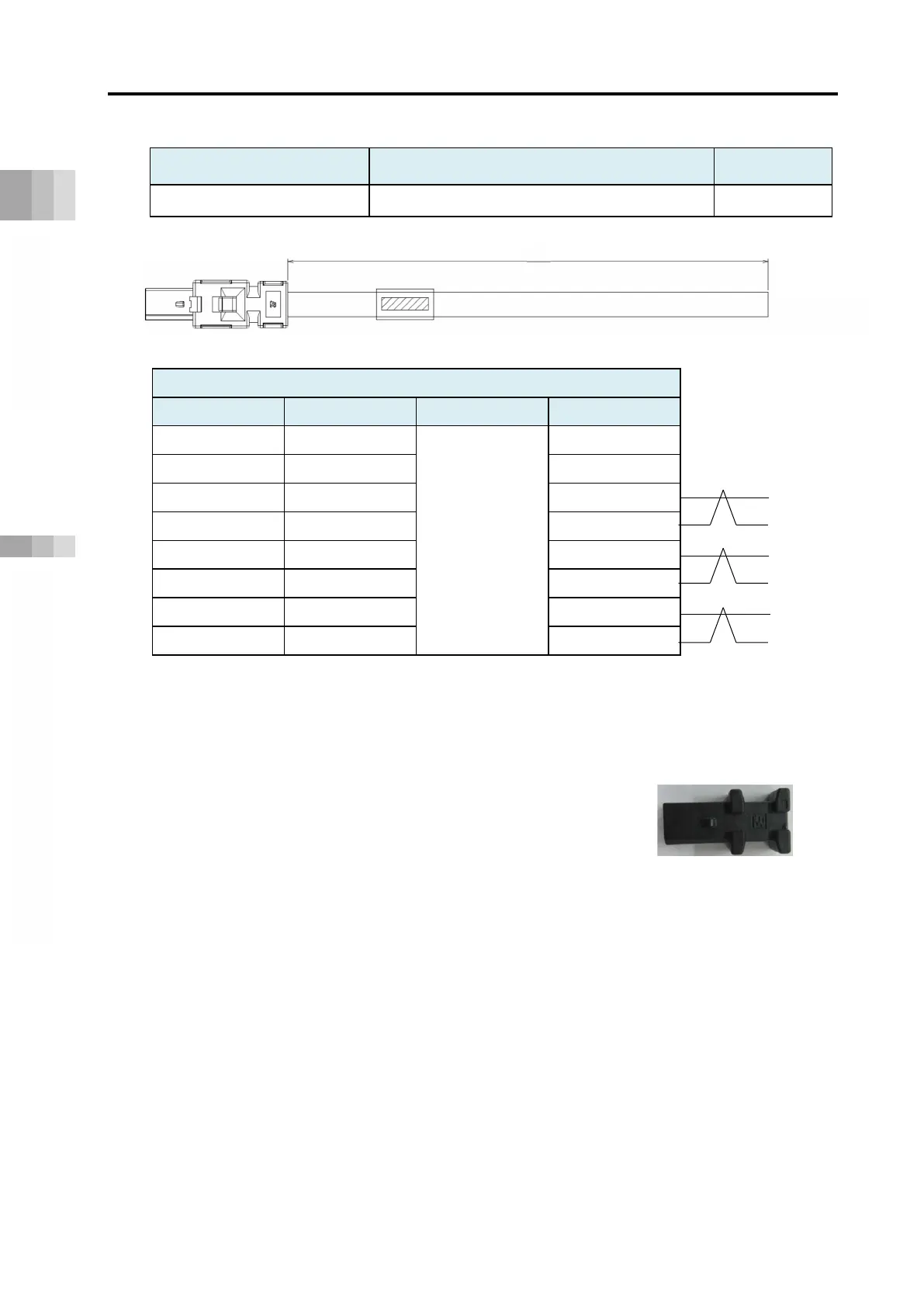

[I/O Cable for Driver Stop Feature] (Sold separately)
Model Number Cable Model Code
CB-SC-STO□□□ 2462C BIOS-CL3-2603P-B (Bando Densen) AWG26×3P
[Dummy Plug for Driver Stop Connector] (Enclosed)
It is a short-circuit plus to unable the function by connecting to the driver stop connector when the
driver stop feature is not in use.
Bare Cut without
Connectors
Connector Name on Controller Side: 2013595-1 (Tyco Electronics)
Pin No. Signal name Cable Color
1 -
AWG26
-
2 - -
3 /SRI1- Black
4 /SRI1+ Black / White
5 /SRI2- Red
6 /SRI2+ Red / White
7 EDM- Green
8 EDM+ Green / White
odel : DP-6
