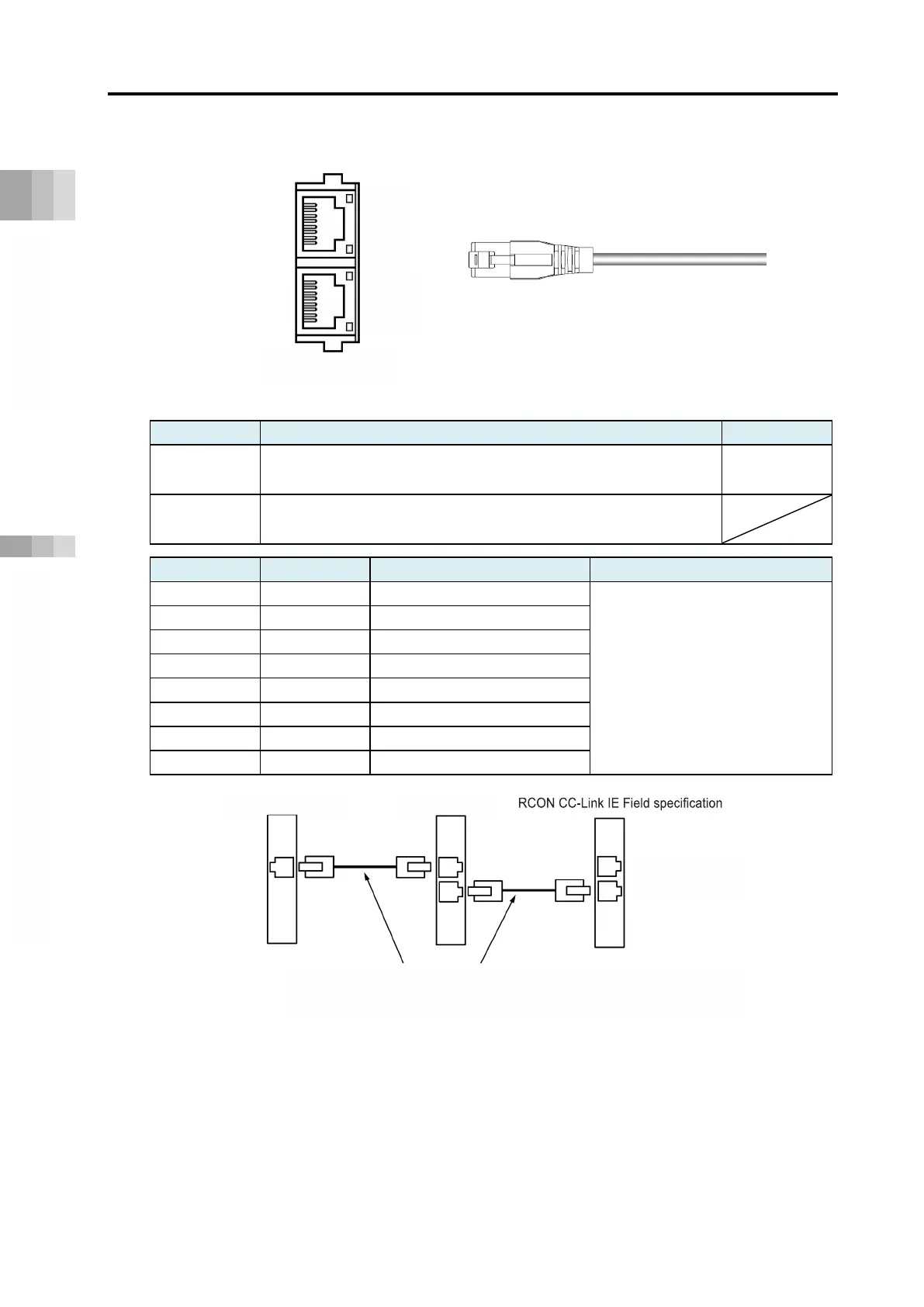

IAI Rcon User Manual

2.5 Connection Diagrams
A2-51
ME0384-4A
Specifications Section
Chapter 2 System Configuration and Specifications
[CC-Link IE Field]
Connector name
CC-Link IE Field cable connector
Remarks
Cable side
Ethernet ANSI/TIA/EIA-568-B Category 5e or higher shielded
8P8C modular plug (RJ-45)
To be prepared
by the customer
Controller side
Ethernet ANSI/TIA/EIA-568-B Category 5e or higher shielded
8P8C modular jack (RJ-45)
Pin No.
Signal name
Description
Compatible wire diameter
1
TD+
Transmit data +
For the Ethernet cable,
use a straight STP cable of
Category 5e or higher.
2
TD-
Transmit data -
3
RD+
Receive data +
4
－
Not used
5
－
Not used
6
RD-
Receive data -
7
－
Not used
8
－
Not used
Controller side
Connector top view
L.ER
LINK
L.ER
LINK
Ethernet straight cable, Category 5e or higher
Aluminum tape and braided double cutoff shielded cable recommended
(Note)
Terminal resistor is not required.
Master unit
Slave device
IN/OUT is not
distinguished in
the connector.
