2U Library I/O station
The I/O (input/output) station (see Figure 58) in a 2U library is part of the left magazine. To open the
I/O station, select Control > Open I/O Station. The I/O station slot opens, and the "Unlocking I/O
station" message displays. Wait for the "Insert/remove cartridge and close I/O station" message to insert
or remove the cartridge, then close the I/O station by gently pushing the slot back into the left magazine.
Note: It is recommended to wait for the messages before you insert or remove cartridges to ensure that
the library is ready to handle the cartridges.

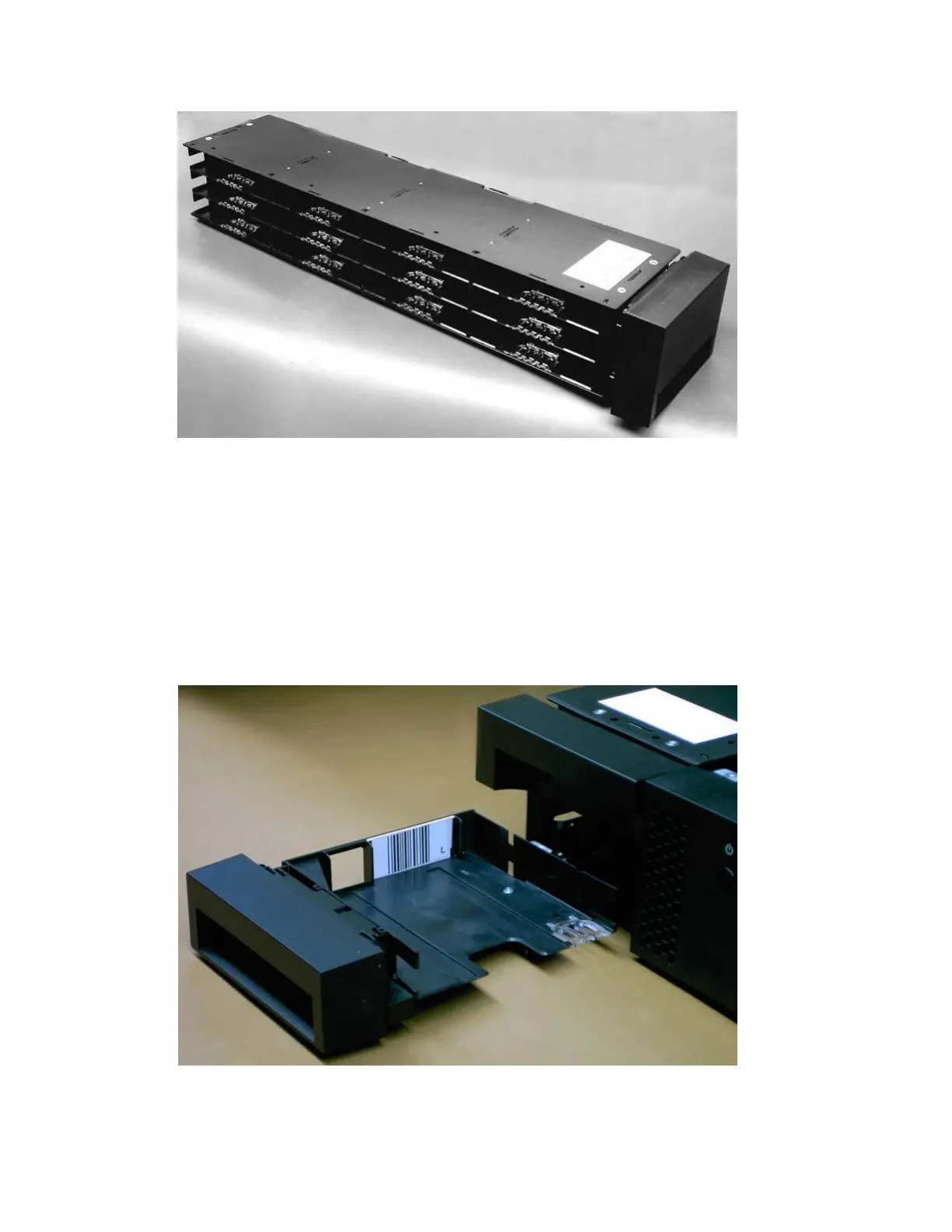

Figure 57. 2U library right magazine
Figure 58. 2U library I/O station in the left magazine
76 IBM TS3100 Tape Library and TS3200 Tape Library: Setup, Operator, and Service Guide Machine Type 3573
