▌1▐ SCSI cable
▌2▐ SAS cable
▌3▐ SCSI terminator
▌4▐ Fibre Channel cable
▌5▐ Ethernet cable
▌6▐ Power cords
▌7▐ Drive sled blue captive thumbscrews
▌8▐ Black pull-out tab
▌9▐ Drive sled
▌10▐ Drive sled handle
5. If present, remove the conductive tape from the drive sled (refer to Figure 172 on page 227).
6. Loosen the blue captive thumbscrews (▌7▐ in Figure 169) on the drive sled.
7. Pull straight back on the drive sled handle (▌10▐) to remove it from the library (see Figure 170 on
page 226).
8. If you are replacing the tape drive sled, proceed to Installing a Tape Drive Sled for instructions. If you
are not replacing the tape drive sled immediately, you must complete these procedures:
a. Install a drive cover plate to protect your library from dust and debris.
b. To remove the "Missing drive" indicators on the Operator Control Panel (Attention LED) and the
Web User Interface (System Status screen), modify or resubmit logical library setting (Operator
Control Panel: Configure > Logical Libraries or Web User Interface: Configure Library > Logical
Libraries).

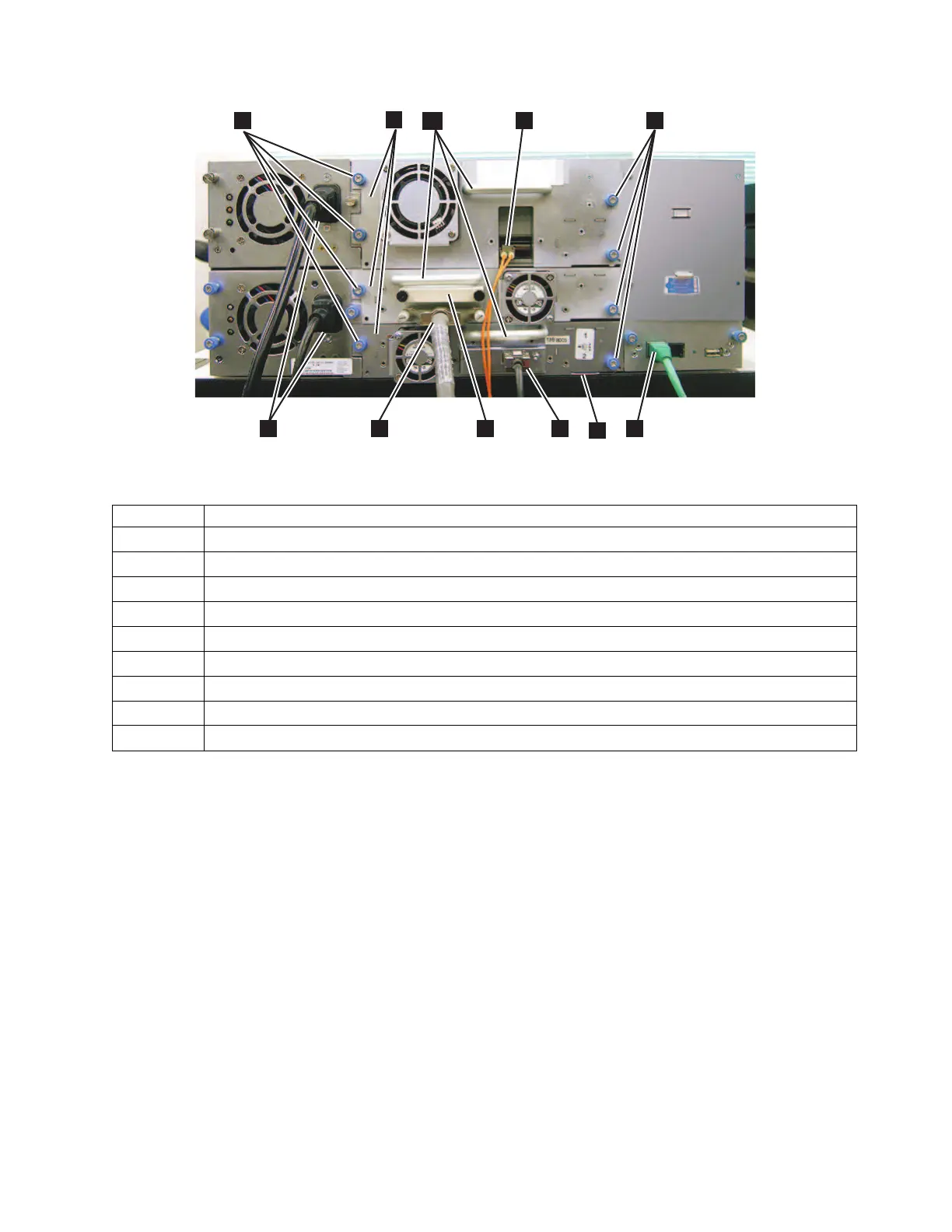

Figure 169. Drive sled components (full height fibre drive in top position, half height SCSI drive in middle position, half
height SAS drive in bottom position) on back panel of a 4U library
Check, adjust, remove, and replace 225
