Before you begin

About this task

Completely remove the magazine from the library. The power does not need to be turned off.

Procedure

1. In the upper right cell, locate the slot blocker (▌1▐).

2. Remove the slot blocker.

a. From behind the magazine, push a screwdriver or a pen through the hole.

b. Pop the slot blocker out of the cell.

3. Slide the magazine back into the rack.

4. Manually restart the library.

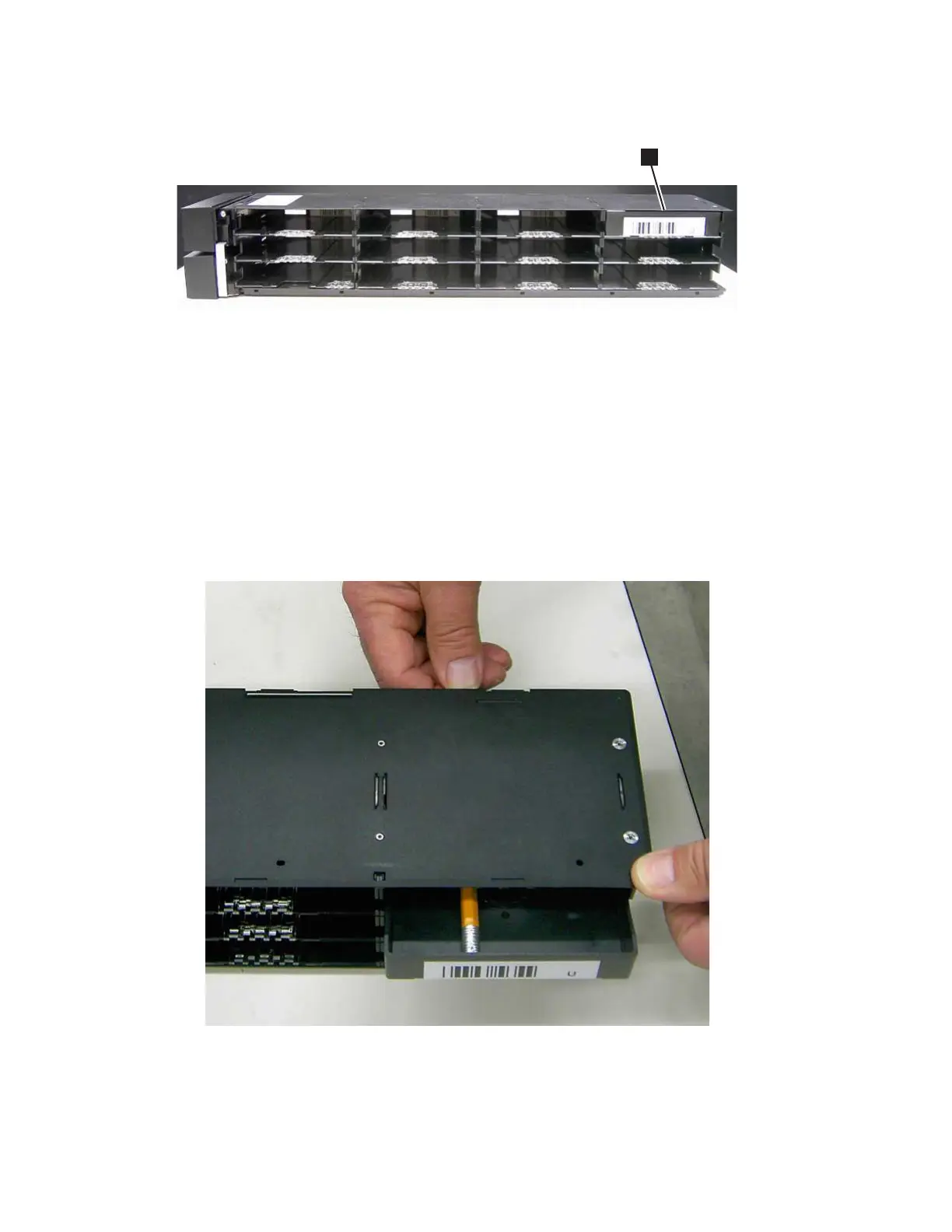

a77ug167

Figure 173. 2U magazine with slot blocker

a77ug168

Figure 174. Popping the slot blocker out of the cell

230 IBM TS3100 Tape Library and TS3200 Tape Library: Setup, Operator, and Service Guide Machine Type 3573
