8. With a #2 Phillips screwdriver, secure the library to the rack (see Figure 33 or Figure 34 on page 53) by

placing a screw in the center hole of each mounting bracket and tightening them (▌1▐).

a77ug109

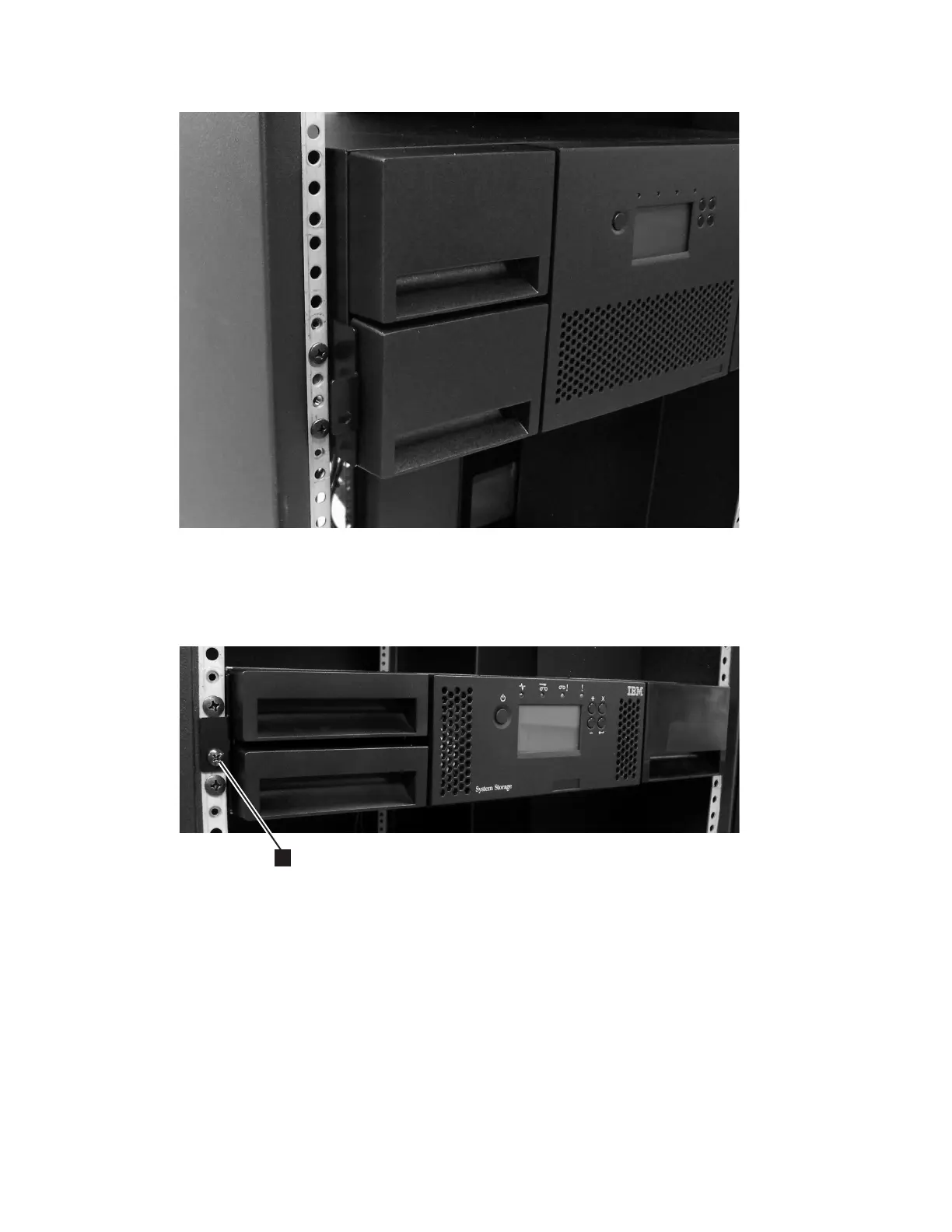

Figure 32. Sliding the 4U library into the rack

a77ug112

Figure 33. Securing the 2U library to the rack

52 IBM TS3100 Tape Library and TS3200 Tape Library: Setup, Operator, and Service Guide Machine Type 3573
