Removing/installing/adding a tape drive sled
About this task
There are two types of drive sleds in a TS3100 library (2U library) and a TS3200 library (4U library). The
contents of the ship groups are specific to the type of drive sled.
v Drive sled without ElectroStatic Discharge (ESD) springs (see Figure 167) ship group:
– Drive sled without ESD springs
– Packet of conductive tape to be applied to the drive sled for ESD protection
v Drive sled with ESD springs (see Figure 168 on page 224) ship group:
– Drive sled with ESD springs

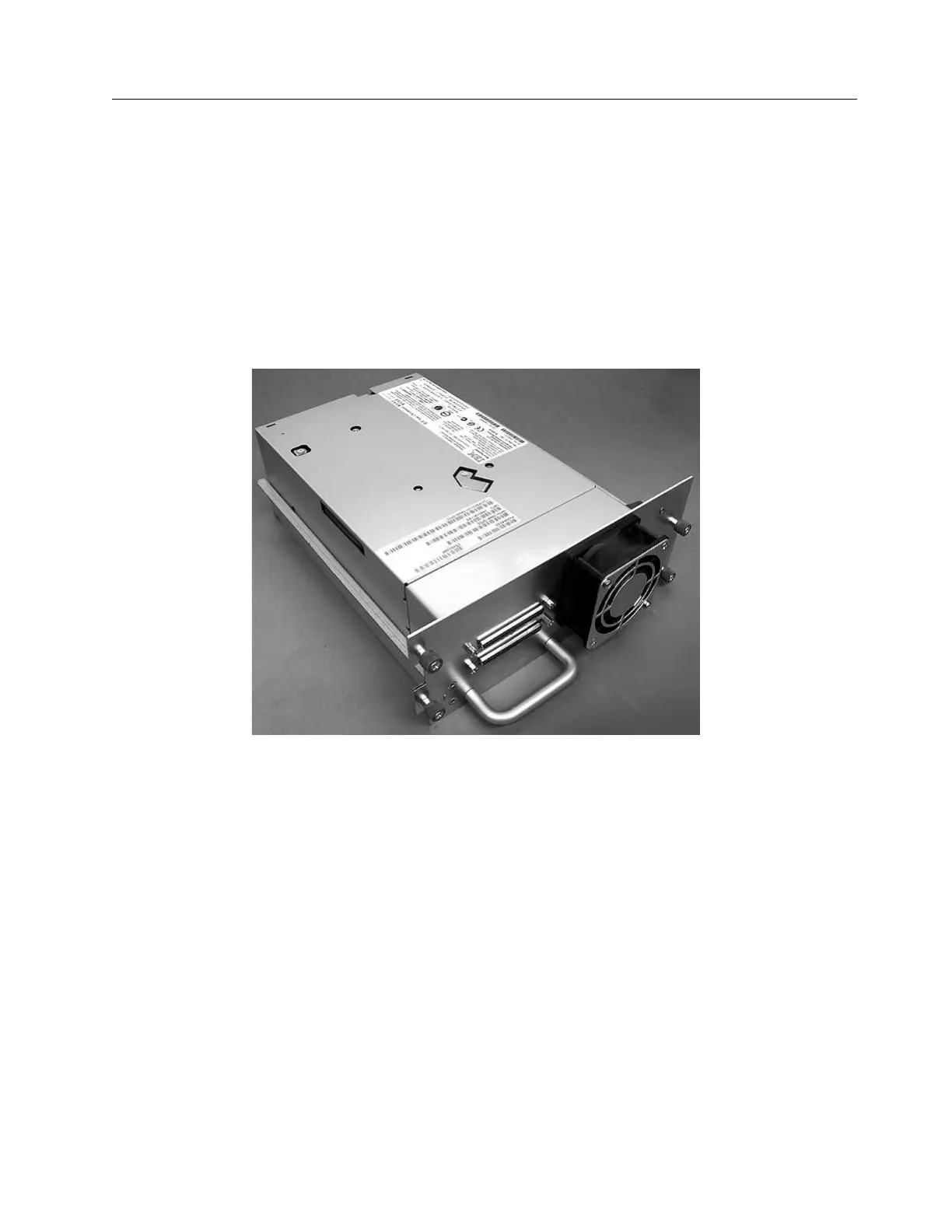

Figure 167. Library drive sled without ElectroStatic Discharge (ESD) springs (SCSI sled shown)
Check, adjust, remove, and replace 223
