2. With assistance, slide the replacement library enclosure onto the metal rails that are already in
position in the rack (see Figure 191).
3. Tighten the mounting bracket screws (▌1▐ in Figure 178 on page 235) to anchor the replacement
library enclosure to the rack.
4. Proceed to “Completing the installation of the replacement library enclosure” on page 247.
What to do next
Desktop Installation:
1. Place the library in its permanent location.
2. Proceed to “Completing the installation of the replacement library enclosure” on page 247.
a77ug012
1
2

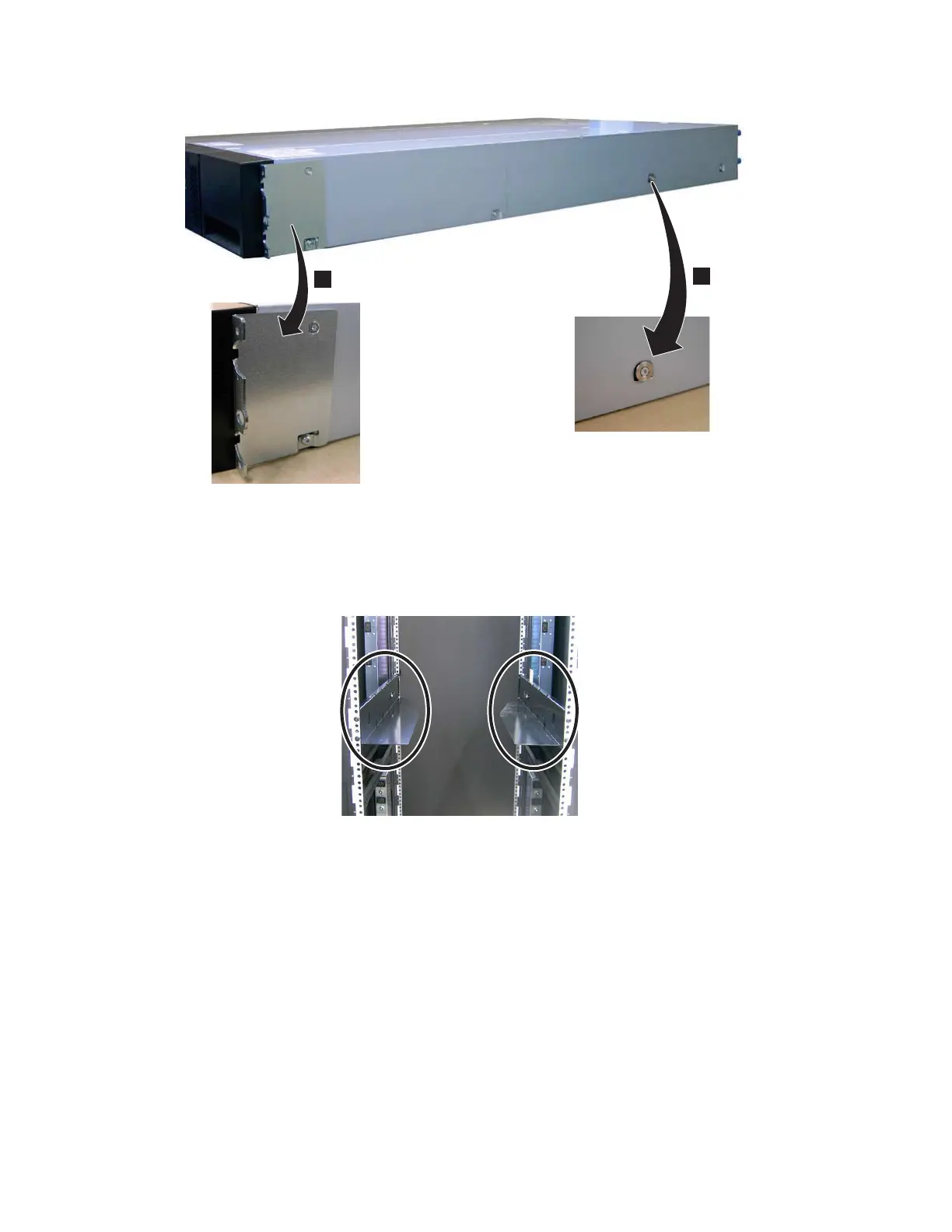

Figure 190. Mounting brackets and anchors for securing the library in a rack (one bracket and anchor on each side of
the library)
a77ug196
Figure 191. Front view of a rack, showing the rails installed
246 IBM TS3100 Tape Library and TS3200 Tape Library: Setup, Operator, and Service Guide Machine Type 3573
