Table 30. Library Status page elements (continued)
Menu Item Description 2U 4U
2. Right Magazine Displays whether the upper right magazine is "Present" or "Not Present". X
Monitor Library: Drive Status
This page provides the following detailed dynamic information about the drive in the library. No changes
can be made from here. The displayed information varies depending on the library model and drive type
(SCSI, SAS, or Fibre Channel). Table 31 lists all available elements on the Drive Status page. An "X"
indicates that the element displays for the specified drive type.
Table 31. Drive Status page elements
Menu Item Description 2U Library 4U Library
SCSI Fibre SAS SCSI Fibre SAS
Status The status of the drive. A check mark indicates
that the drive is operating properly. An
exclamation point indicates that the drive is
operating but has a problem. An X indicates that
the drive is not operational because of a serious
problem.
X X X X X X
Cartridge in
Drive
The serial number of the cartridge currently in
the drive. If the drive does not contain a
cartridge, "None" is displayed.
X X X X X X
Drive Error
Code
If the drive generated an error code, it is
displayed here. If the drive did not generate an
error, "No Error" is displayed.
X X X X X X
Cooling Fan
Active
Displays whether the drive 's cooling fan is ON
(checked) or OFF.
X X X X X X
Drive
Activity
Indicates whether the drive is operating. X X X X X X
Port A
Status
Indicates whether Port A is logged on or out. X X X X
Port B
Status
Indicates whether Port B is logged on or out. X X
Port Name The name that is assigned to the Port on the
drive.
X X

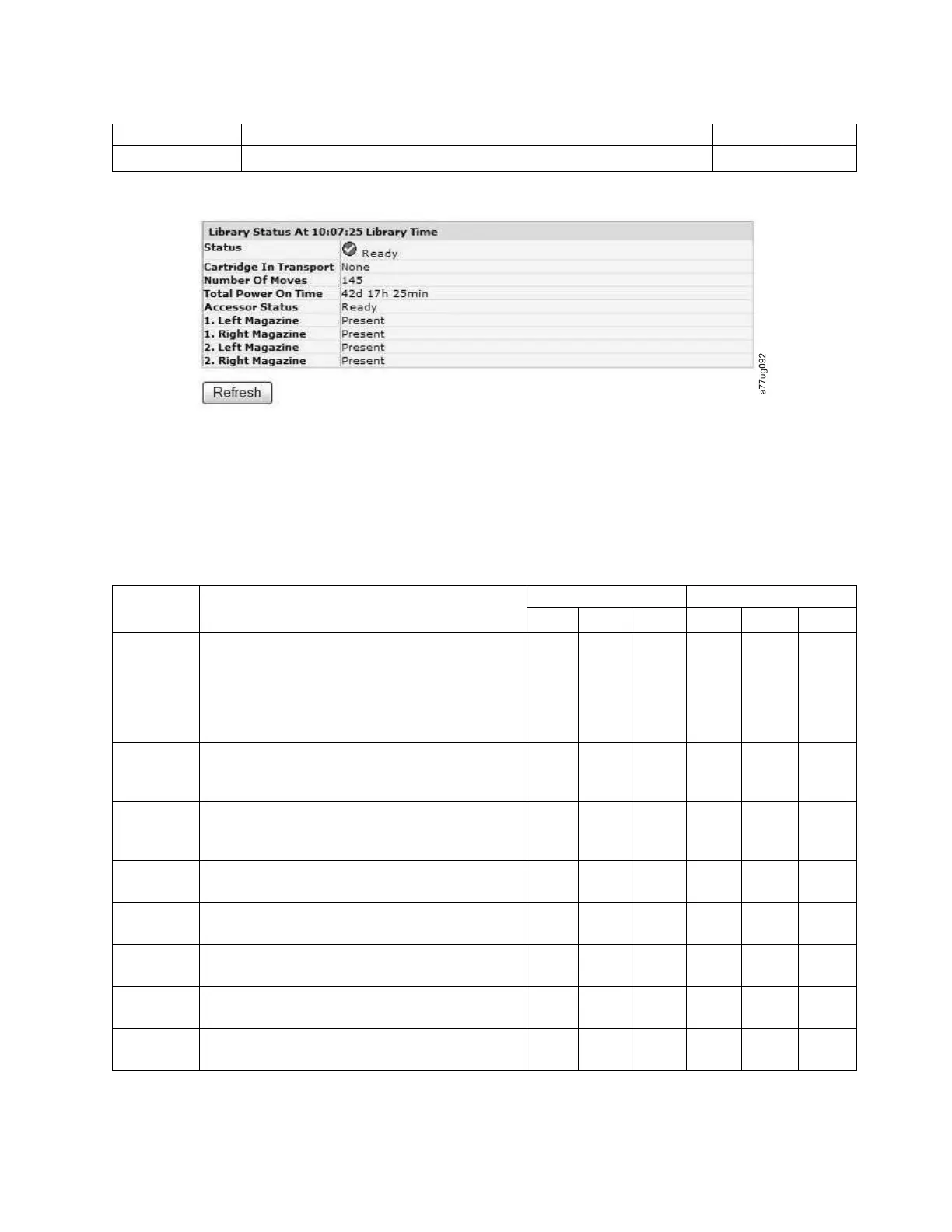

Figure 91. The 4U library Monitor Library: Library Status page
Operations 117
