Procedure
1. With the front of the drive facing you, pull an arm's length of tape out of the take up reel from the
left side of the drive.
2. From the take up reel, thread tape around the rear of the tape path and over the head and rollers on
the left side of the drive.
3. Set the drive on its left side with the head and tape path facing up.
4. Moisten a cotton swab with water and wet approximately 13 mm (0.5 in.) of the tape end and feed it
onto the supply reel (inside the cartridge).
5. From the bottom of the drive, insert a 2.5 mm offset hex wrench through the bottom cover access hole
and into the reel motor axle.
6. Turn the supply reel clockwise, allowing the moistened tape to adhere to the hub as it winds around
the supply reel (inside the cartridge).
7. Continue spooling into the cartridge until the tape is taut and remains within the flanges of the tape
guiding rollers. Ensure that you do not stretch the tape.
8. Go to “Ending procedure” on page 283.
Half height drive: Tape spooled off supply reel
Before you begin
Attention: DO NOT TOUCH THE OUTER GUIDE RAIL (▌2▐). THIS RAIL IS DELICATE AND
EASILY DAMAGED.

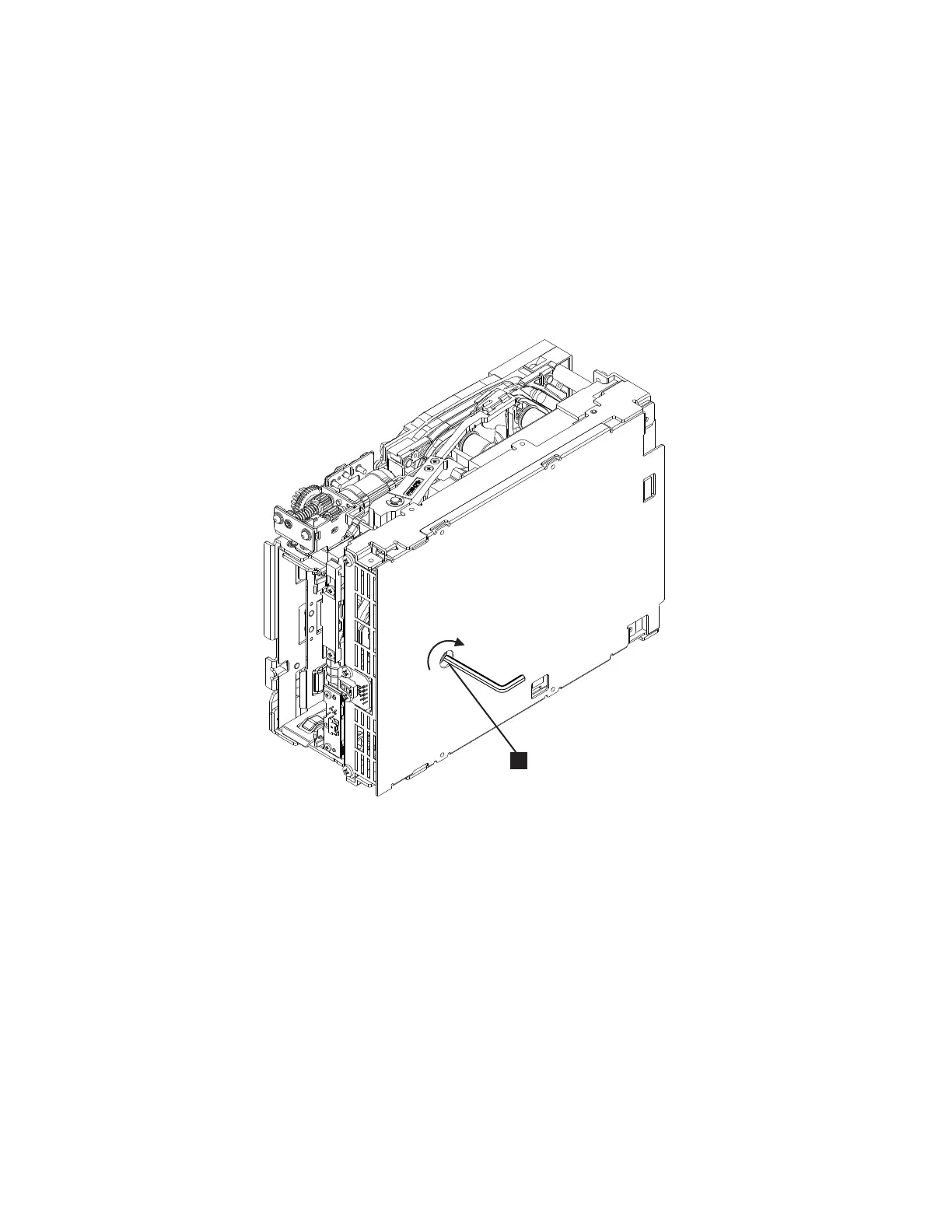

Figure 200. The hex wrench rewinds tape into cartridge
266 IBM TS3100 Tape Library and TS3200 Tape Library: Setup, Operator, and Service Guide Machine Type 3573
