The Ultrium 3 Full Height Tape Drive supports LVD Ultra160, or Fibre Channel interfaces. It features two
HD68 connectors or one LC Fibre Channel connector. The Ultrium 3 Half Height Drive (Feature Codes
8046 and 8047) supports one SAS SFF-8088 connector or two HD68 SCSI connectors. The Ultrium 3 Half
Height V2 Tape Drive (Feature Code 8049) supports two SFF-8088 SAS connectors. The SFF-8088 SAS
connectors on the Ultrium 3 tape drives are compatible with SAS-1 cables.
Note: Ultrium 3 and 4 SCSI, SAS, and Fibre Channel drives are allowed in the same physical and logical
library.

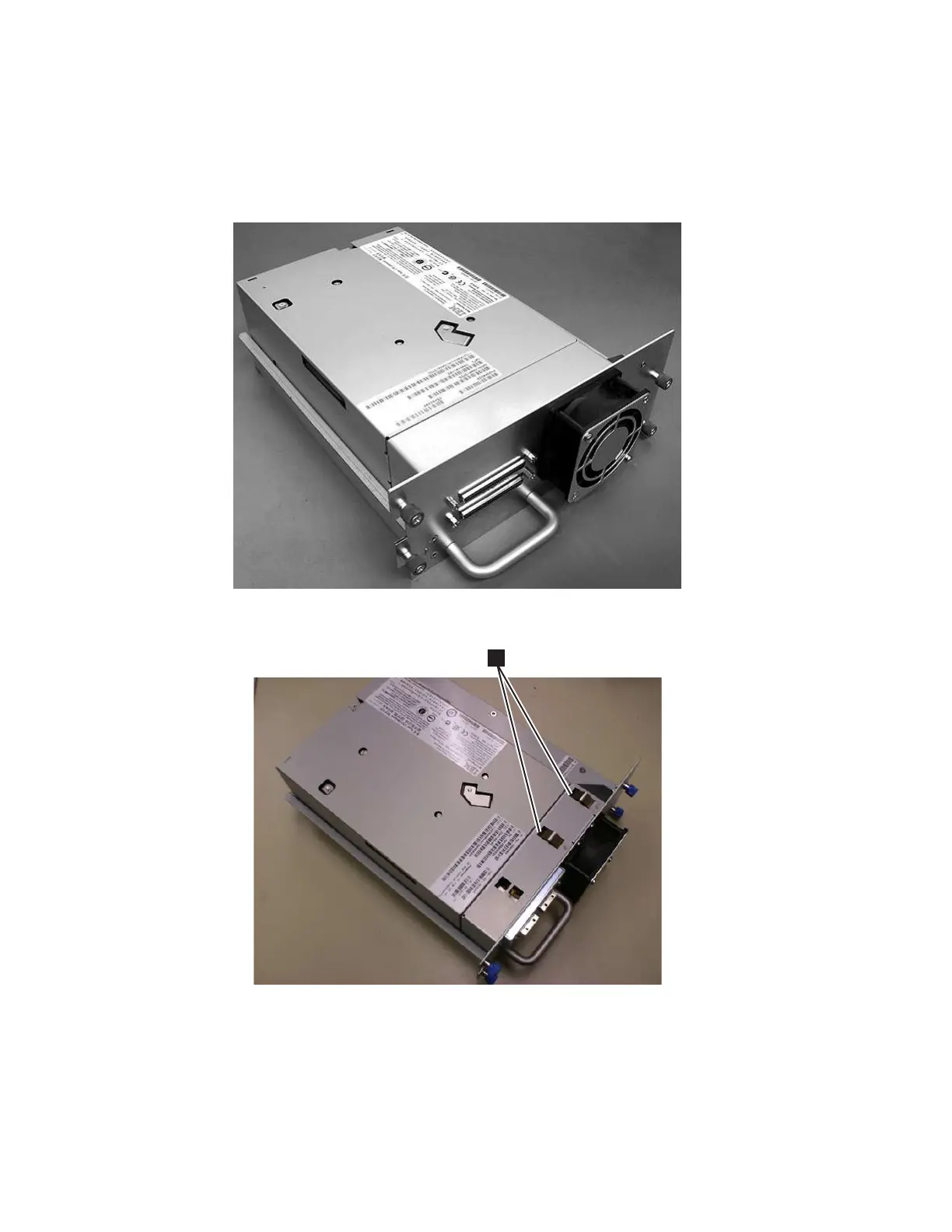

Figure 6. Library drive sled without ESD springs (SCSI sled shown)
Figure 7. Library drive sled with ESD springs [1] (SAS sled shown)
10 IBM TS3100 Tape Library and TS3200 Tape Library: Setup, Operator, and Service Guide Machine Type 3573
