3.
T
o
manually
release
the
magazines,
push
the
end
of
a
straightened
paper
clip
into
the
access
hole
for
each
magazine
at
the
back
of
the
library
.
While
you
are
holding
the
paper
clip,
have
a
second
person
pull
the
magazine
out
of
the
front
of
the
unit.
DO
NOT
push
the
paper
clip
in
more
than
1/2
inch.

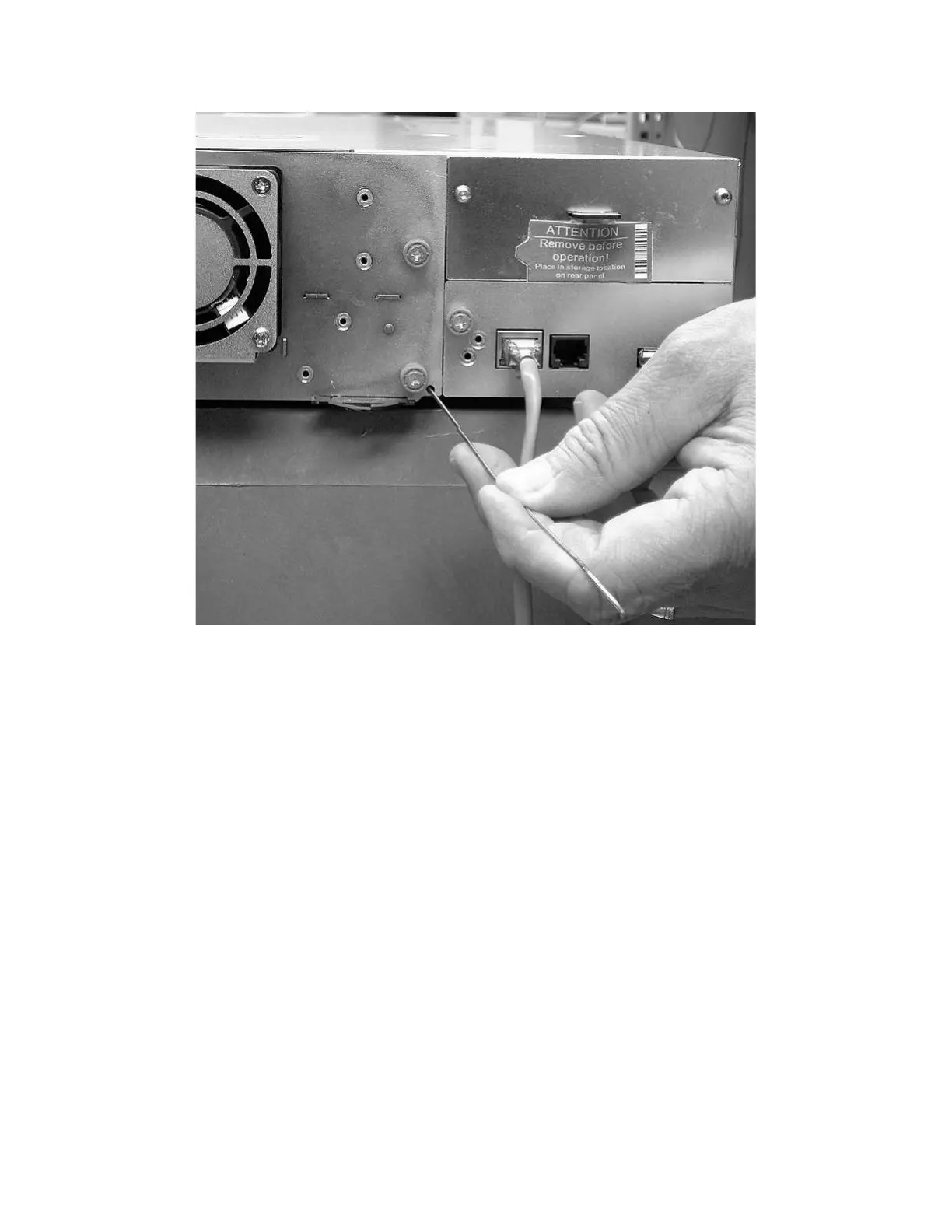

a77ug024
Figure
161. Access
holes
for
the
right
magazine
Service
procedures
217
244
246
