4. If there are tapes still in the library, or if you were unable to manually remove the magazines and

drive, contact technical support for further instructions.

IBM Tape Diagnostic tool (ITDT)

The IBM Tape Diagnostic tool (ITDT):

v Runs quick or extended diagnostic tests on tape drives. If the library is online to the server/host where

the tool resides, ITDT communicates with the drive through the library to load and unload a test

cartridge, exercising some library functions.

v Retrieves firmware memory dumps from tape drives and libraries.

a77ug023

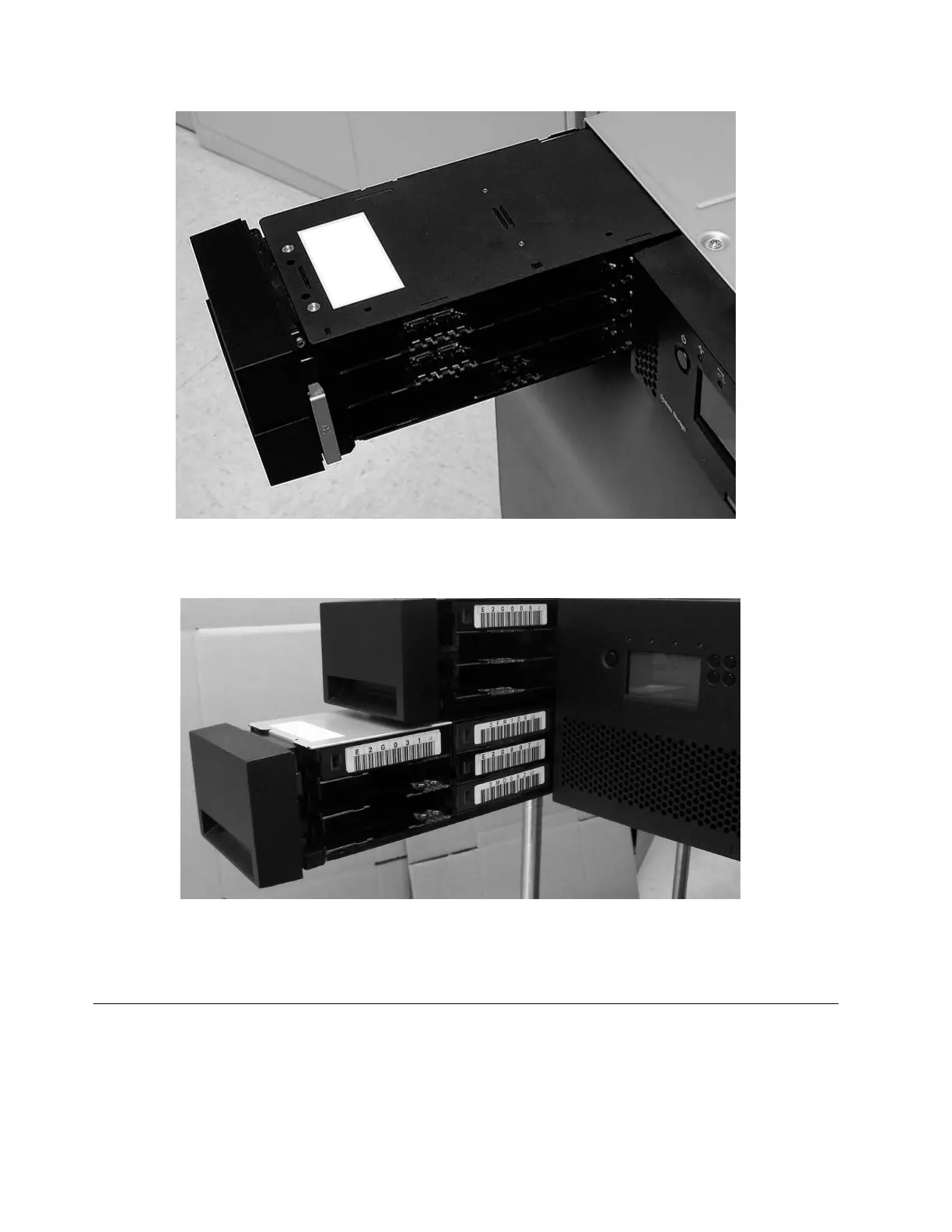

Figure 162. Left magazine pulled out of the 2U library

a77ug102

Figure 163. Left Magazines pulled out of the 4U Library

218 IBM TS3100 Tape Library and TS3200 Tape Library: Setup, Operator, and Service Guide Machine Type 3573
