▌1▐ Loader motor worm gear ▌2▐ Leader block assembly (LBA)
8. Rotate the loader motor worm gear (▌3▐) counterclockwise as viewed from the front of the drive
until it stops.
9. Remove the cartridge from the cartridge loader tray.
10. Go to “Ending procedure” on page 283.
Full height drive: Tape broken in mid-tape
Procedure
1. With the front of the drive facing you, pull an arm's length of tape out of the take up reel from the
left side of the drive.
Note: If there is less than approximately 5 cm (2 in.) of tape on the take up reel, go to “Full height
drive: Tape pulled from or broken near leader pin” on page 268.
2. From the supply reel inside the cartridge, pull approximately 0.3 m (1 ft.) of tape.
3. From the take up reel, thread tape around the rear of the tape path and over the head rollers on the
left side of the drive.
4. Moisten a cotton swab with water, and wet approximately 13 mm (0.5 in.) of the tape end. Overlap
the tape ends, loosely mending them together.
5. Set the drive on its left side with the head and tape path facing up.
6. From the bottom of the drive, locate the access hole (▌1▐ in Figure 206 on page 272) in the bottom
cover. Insert a 2.5 mm offset hex wrench through the bottom cover access hole and into the reel motor
axle. Begin spooling tape back into the cartridge by turning the hex wrench clockwise.

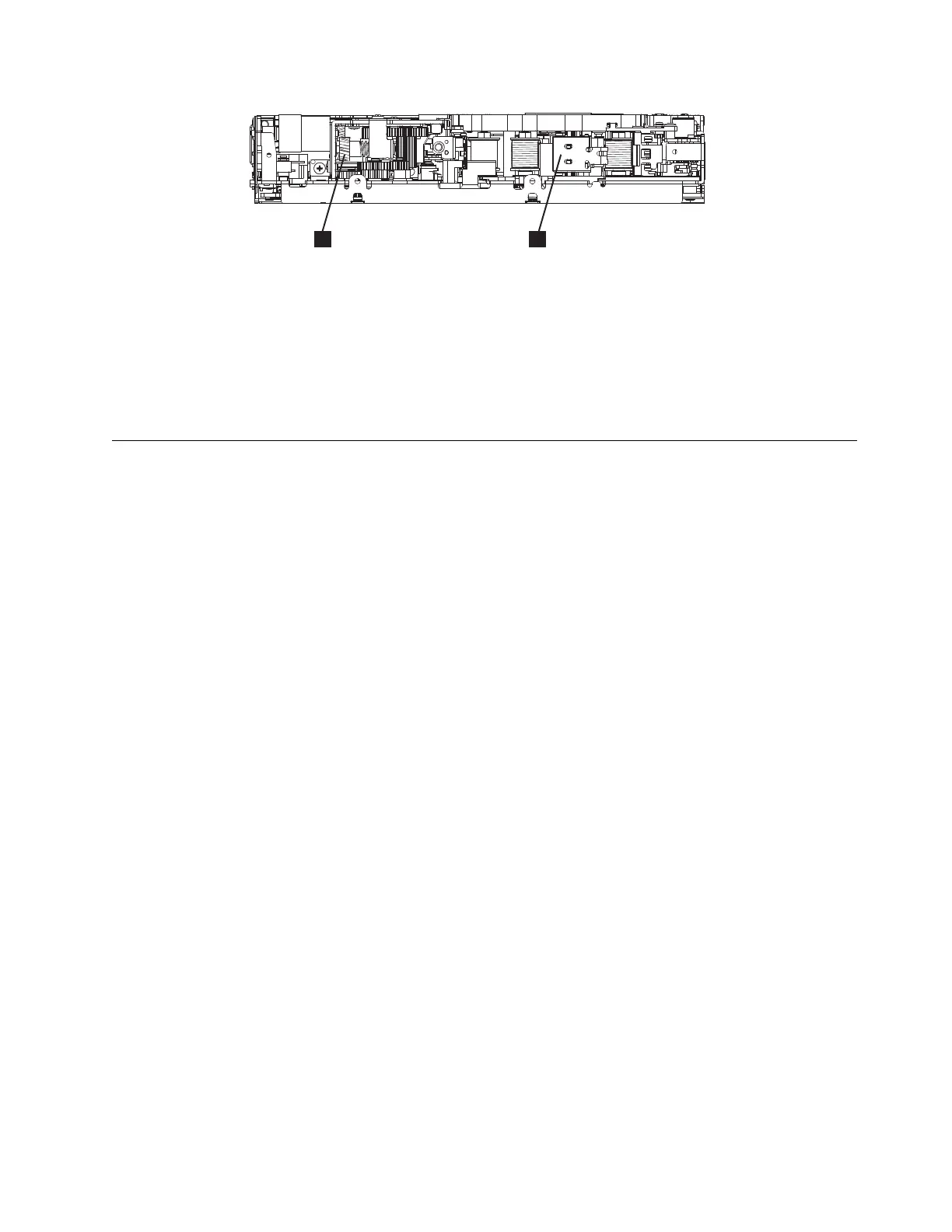

Figure 205. Leader Block Assembly (LBA)
Appendix A. Information for trained service personnel 271
