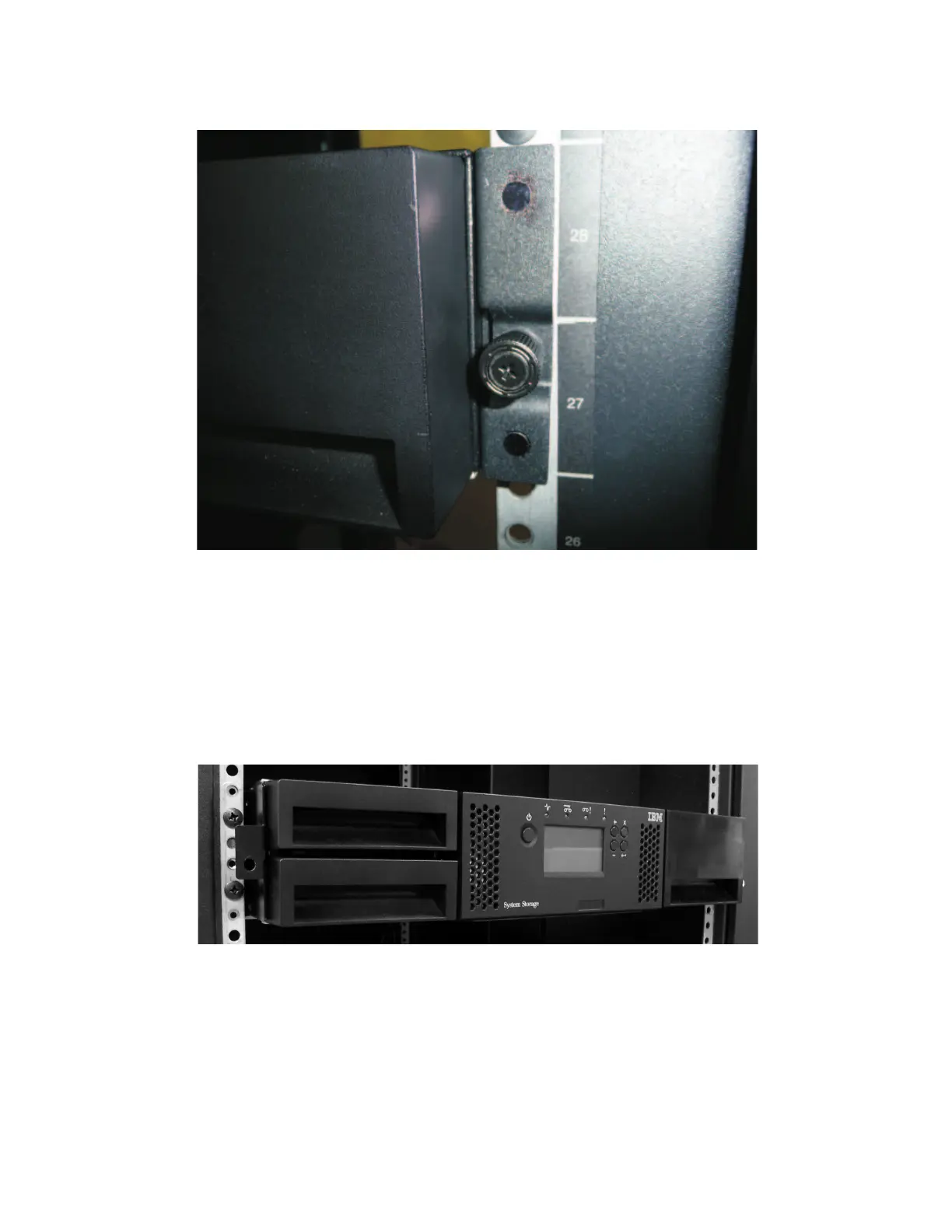

6. Install the library-mounting brackets (▌1▐) as shown on the 2U library on each side of the library with
the screw that was removed from your library and an extra short, counter-sunk screw included in the
rack kit. (The 4U rack anchors and mounting brackets are similar.)
7. With library rack anchors and mounting brackets that are installed, slide the library onto the rails (as
shown in Figure 31 and Figure 32 on page 52). Gently push the library into the rack to lock the REAR
anchors installed on each side of the library. When the library stops, the front mounting brackets are
flush with the vertical rack rails.
Figure 30. 2U library side screws to remove
Figure 31. Sliding the 2U library into the rack
Installation and configuration 51
