5. Tighten the captive thumbscrews (▌7▐ in Figure 169 on page 225) until the drive sled is secure.
6. If you are installing a drive sled without ESD springs (see Figure 167 on page 223), apply conductive
tape to the sled as shown in Figure 172.

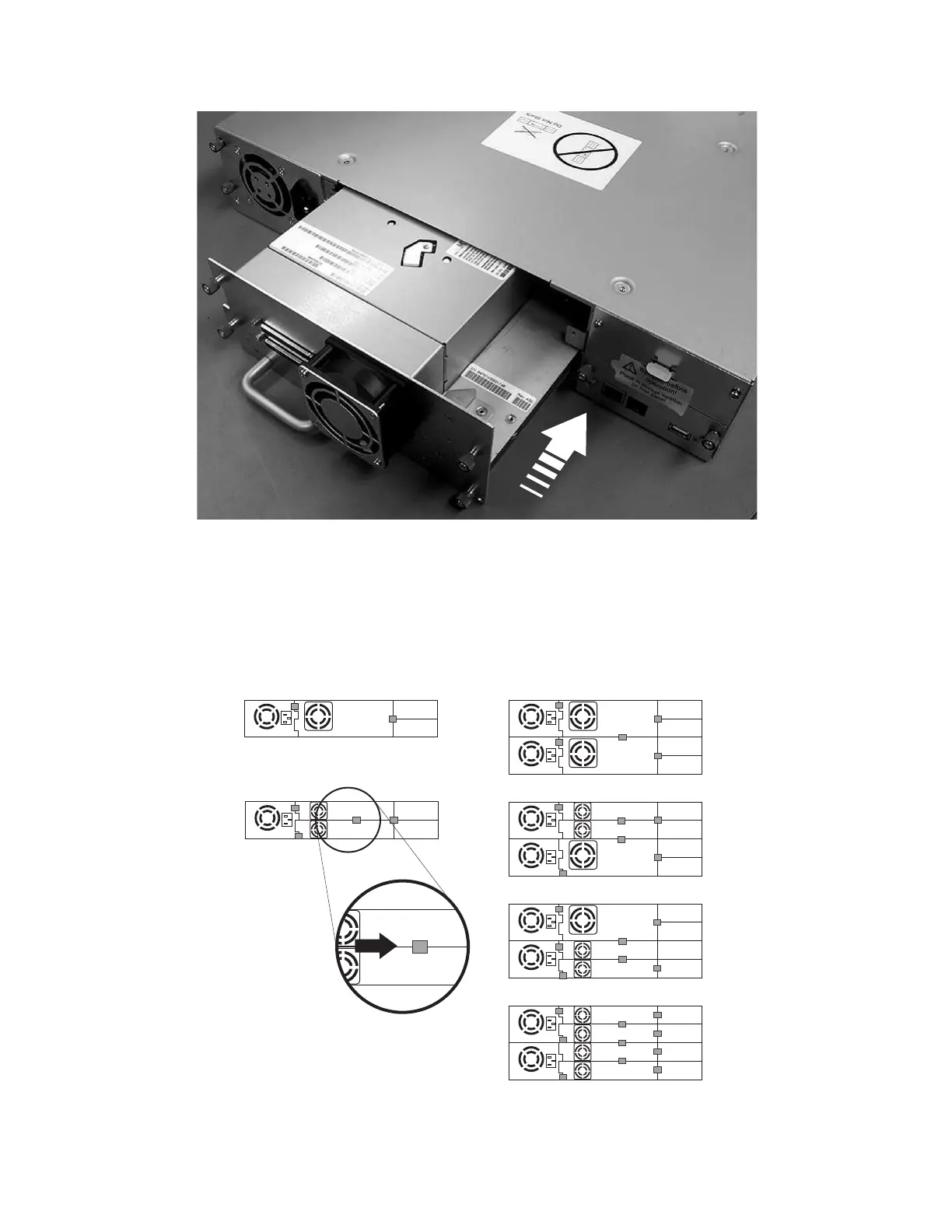

Figure 171. Pushing the drive sled into the library (drive sled without ESD springs shown)
2ULibrary 4ULibrary
a77ug203
Figure 172. Diagrams for applying conductive tape for ESD protection to the back of a drive sled installed in a 2U or
4U library
Check, adjust, remove, and replace 227
