2. From the bottom of the drive, locate the access hole (▌1▐ in Figure 212).
3. Insert a 2.5 mm offset hex wrench through the bottom cover access hole and into the reel motor axle.
Begin spooling the tape back into the cartridge by turning the hex wrench clockwise.
4. Continue spooling into the cartridge until the tape is taut and remains within the flanges of the tape
guiding rollers. Ensure that you do not stretch the tape.
5. Locate the threader motor worm gear (▌4▐ in Figure 213 on page 279) on the rear of the drive. Use
your finger to rotate the threader motor worm gear and slowly rotate the threader mechanism gear
(▌6▐ in Figure 213 on page 279) clockwise. This action rotates the threader motor worm gear (▌4▐ in
Figure 213 on page 279) clockwise, drawing the LBA into the cartridge.

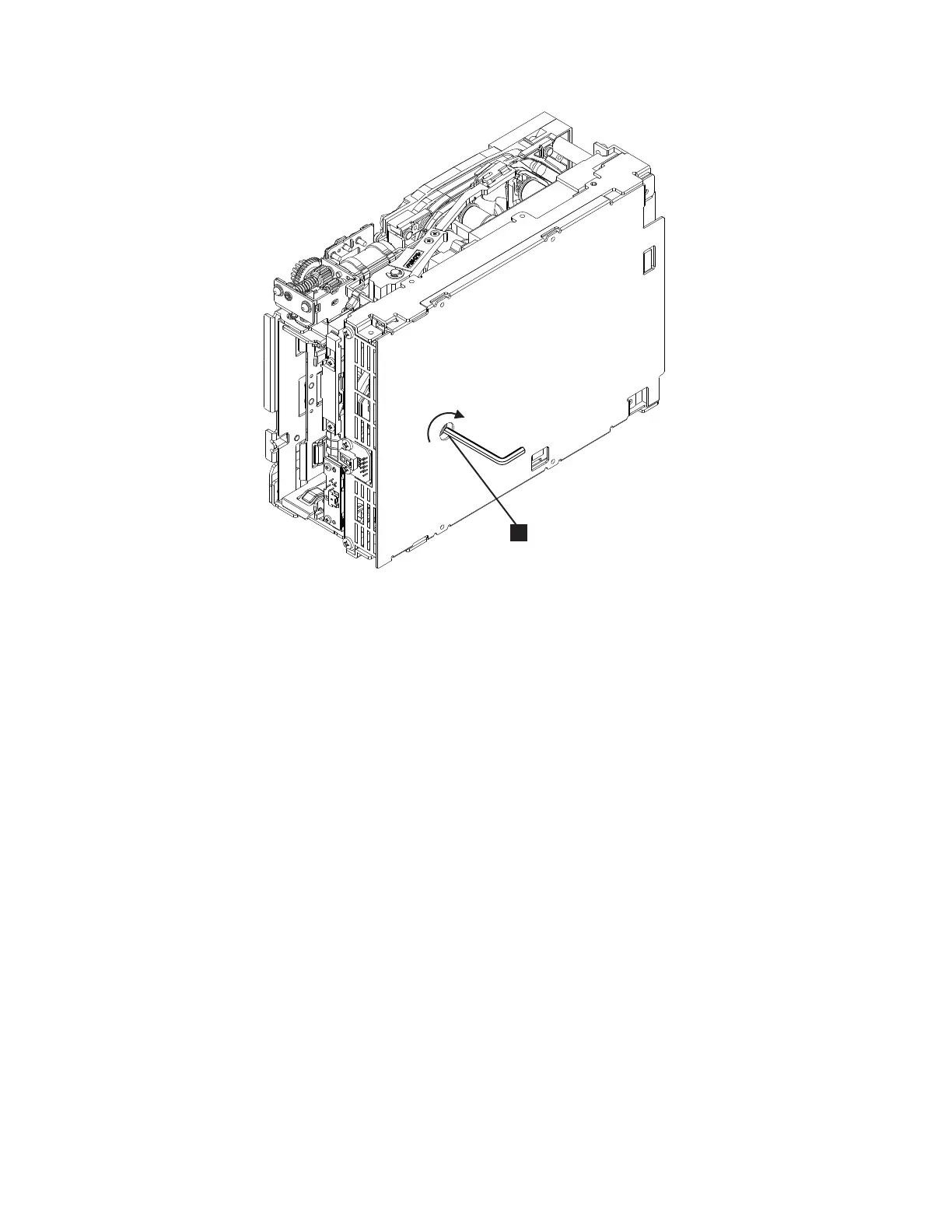

Figure 212. The hex wrench rewinds tape into cartridge
278 IBM TS3100 Tape Library and TS3200 Tape Library: Setup, Operator, and Service Guide Machine Type 3573
