2. Insert the cartridge magazines that are removed from the defective library into the same positions in
the replacement library enclosure.
3. Insert the cartridge magazines removed from the replacement library enclosure into the same
positions in the defective library to return to IBM.
4. Wait for inventory of the magazines to complete.
a. If inventory is successful:
1) The replacement library enclosure completes with the Ready/Activity LED (▌1▐ in Figure 186
on page 243) ON.
2) Power OFF the replacement library enclosure.
3) Proceed to “Swapping power supplies” on page 240.
b. If inventory is not successful:
1) The error LED (▌4▐ in Figure 186 on page 243) turns ON.
2) Power OFF the enclosure.
3) Contact IBM technical support for instructions.
Installing the replacement library enclosure
Refer to the appropriate procedure (rack or desktop) for installing the replacement library enclosure.
Before you begin
Note: If you are shipping the replacement library enclosure to a remote location, install the shipping
lock and label before shipment.
About this task
Rack Installation:
Procedure
1. Remove the mounting brackets (▌1▐ in Figure 190 on page 246) and anchors (▌2▐) from each side of
the defective library and install them on the replacement library enclosure.

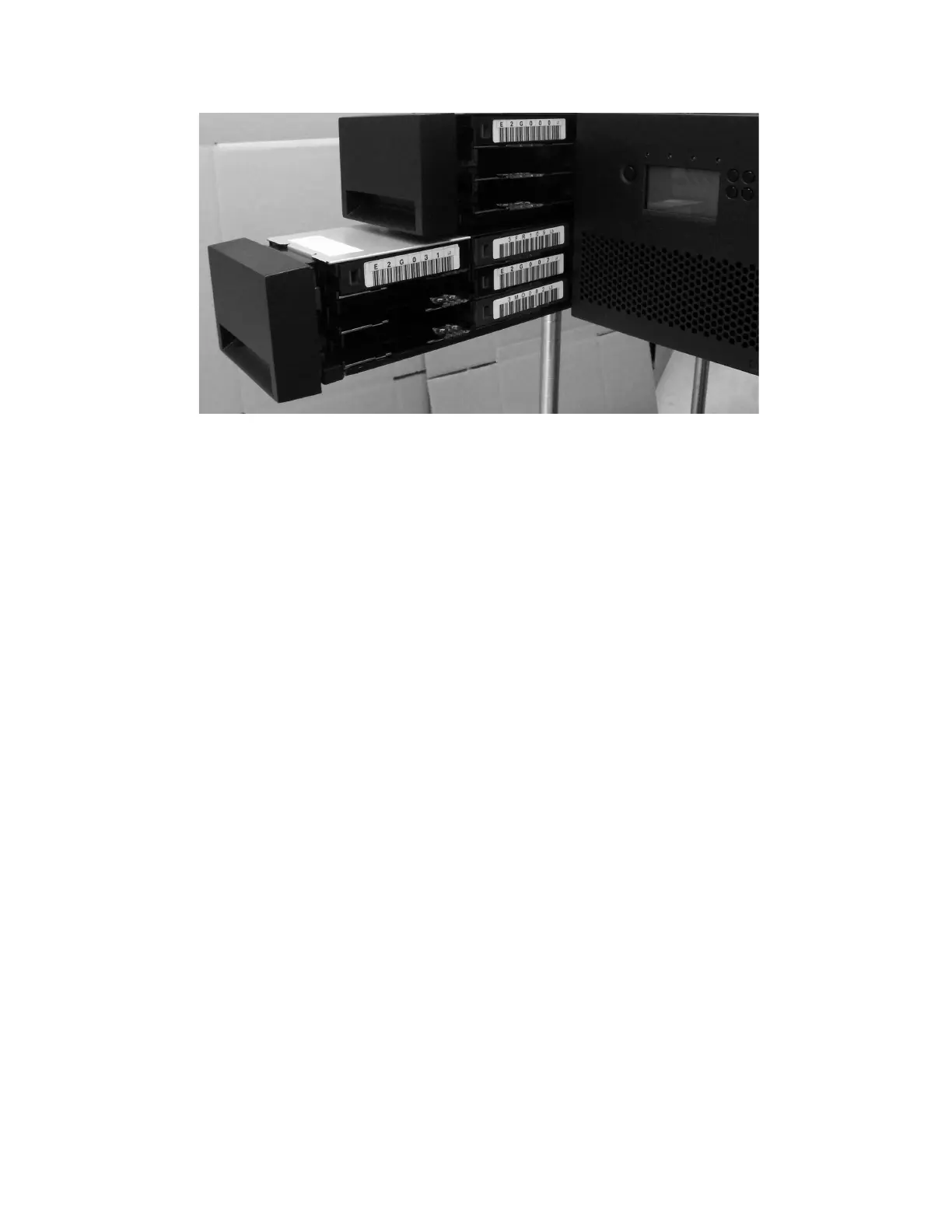

Figure 189. Left magazines pulled out of a 4U library (facing front of library)
Check, adjust, remove, and replace 245
