h. If a drive sled without ESD springs is installed (see Figure 182 on page 238), apply conductive
tape as shown in Figure 183.
Note: The gray markers show where conductive tape is placed.
i. Push the black tab back underneath the drive sled. When inserted properly, only the handle of the
tab is visible.
2. Power ON the replacement library enclosure.
a. If power ON is successful,
1) After power up, the Ready/Activity LED (▌1▐ in Figure 186 on page 243) turns ON.
a) If this message is displayed after the library powers ON, follow the instructions.
[New library detected.]
[Please remove power and insert LCC from old library]
[ok]
2) Power OFF the replacement library enclosure.
3) You must power down, and remove the CRU LCC. Then, replace it with the original LCC to
have VPD transferred from the original LCC to the new chassis.
4) Proceed to “Swapping power supplies” on page 240.
b. If power ON is not successful,
1) The Error LED (▌4▐ in Figure 186 on page 243) turns ON.
2) Power OFF the replacement library enclosure.
3) Contact IBM technical support for instructions.

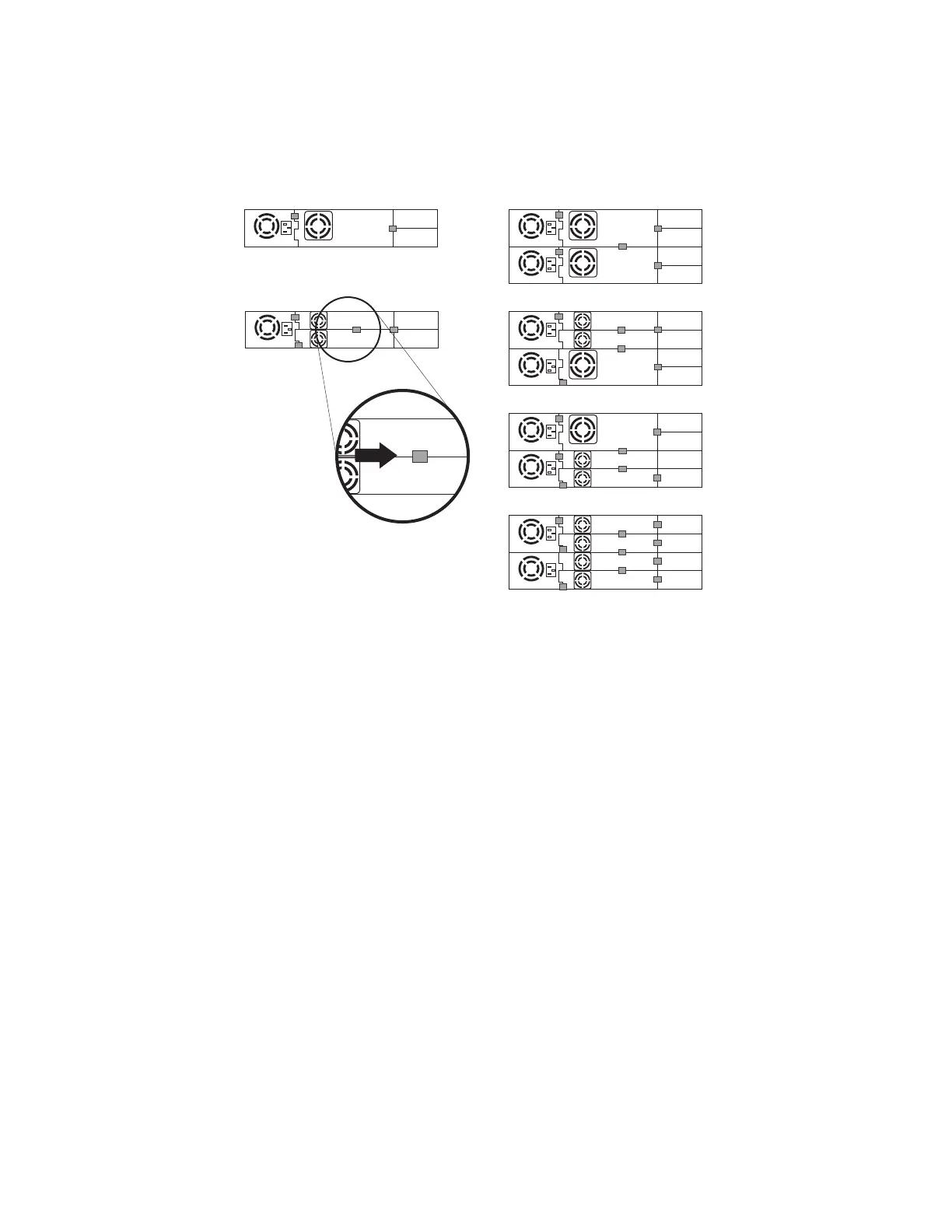

2ULibrary 4ULibrary
a77ug203
Figure 183. Drive sled taping diagrams
Check, adjust, remove, and replace 239
