8-4 EQUIPMENT AND FURNISHINGS / EQUIPMENT AND FURNISHINGS GENERAL MAINTENANCE
ICON A5 / MAINTENANCE MANUAL CHANGE C1
CHAPTER 8

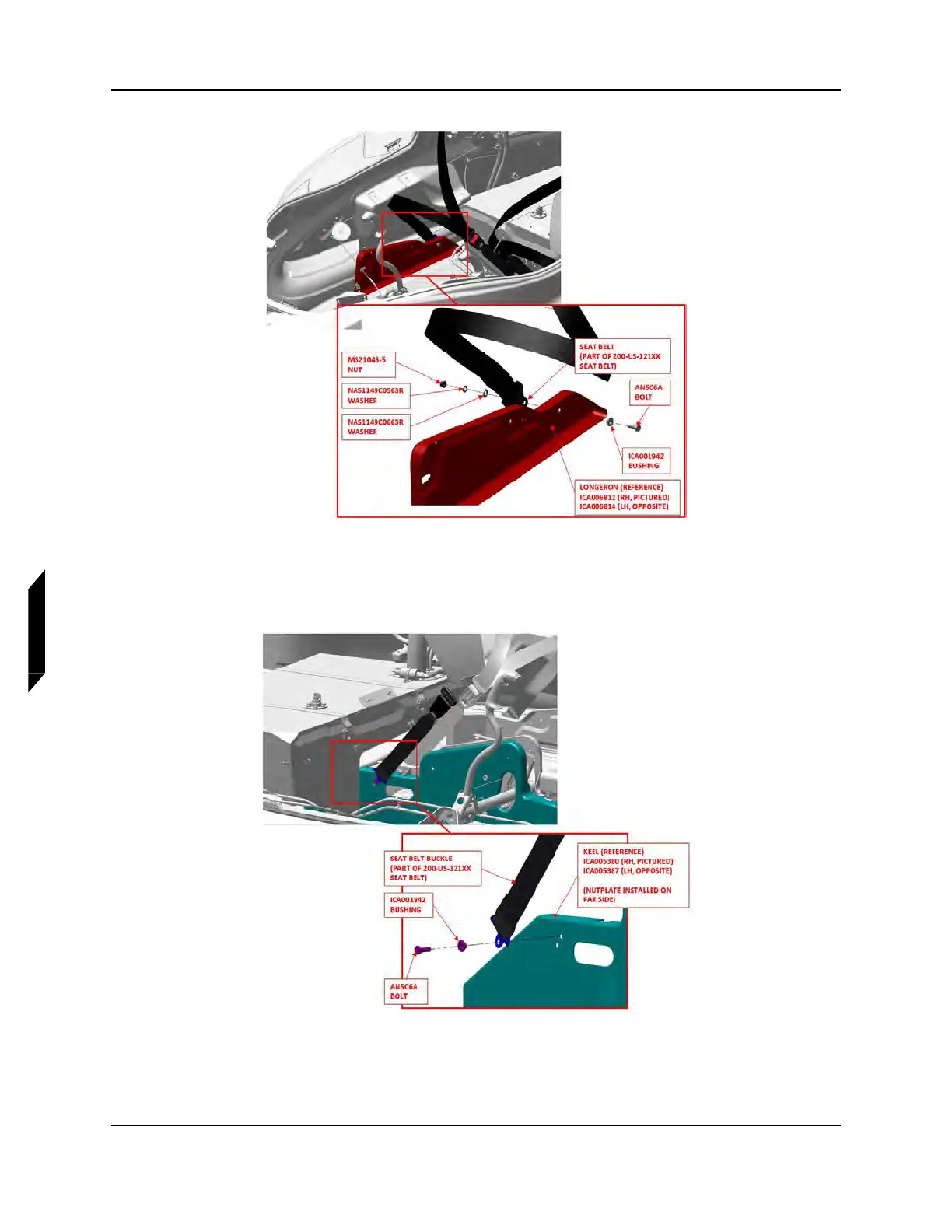

FIGURE 8-1
CO-PILOT SIDE SHOWN
4. Use a 1/2 wrench to remove the bolt securing the inboard end of the seat belt where it attaches
to the inboard keel structure; it is threaded into a nutplate. See Figure 8-2.
FIGURE 8-2
CO-PILOT SIDE SHOWN
Installation
