EQUIPMENT AND FURNISHINGS / EQUIPMENT AND FURNISHINGS GENERAL MAINTENANCE 8-7
CHANGE C1 ICON A5 / MAINTENANCE MANUAL

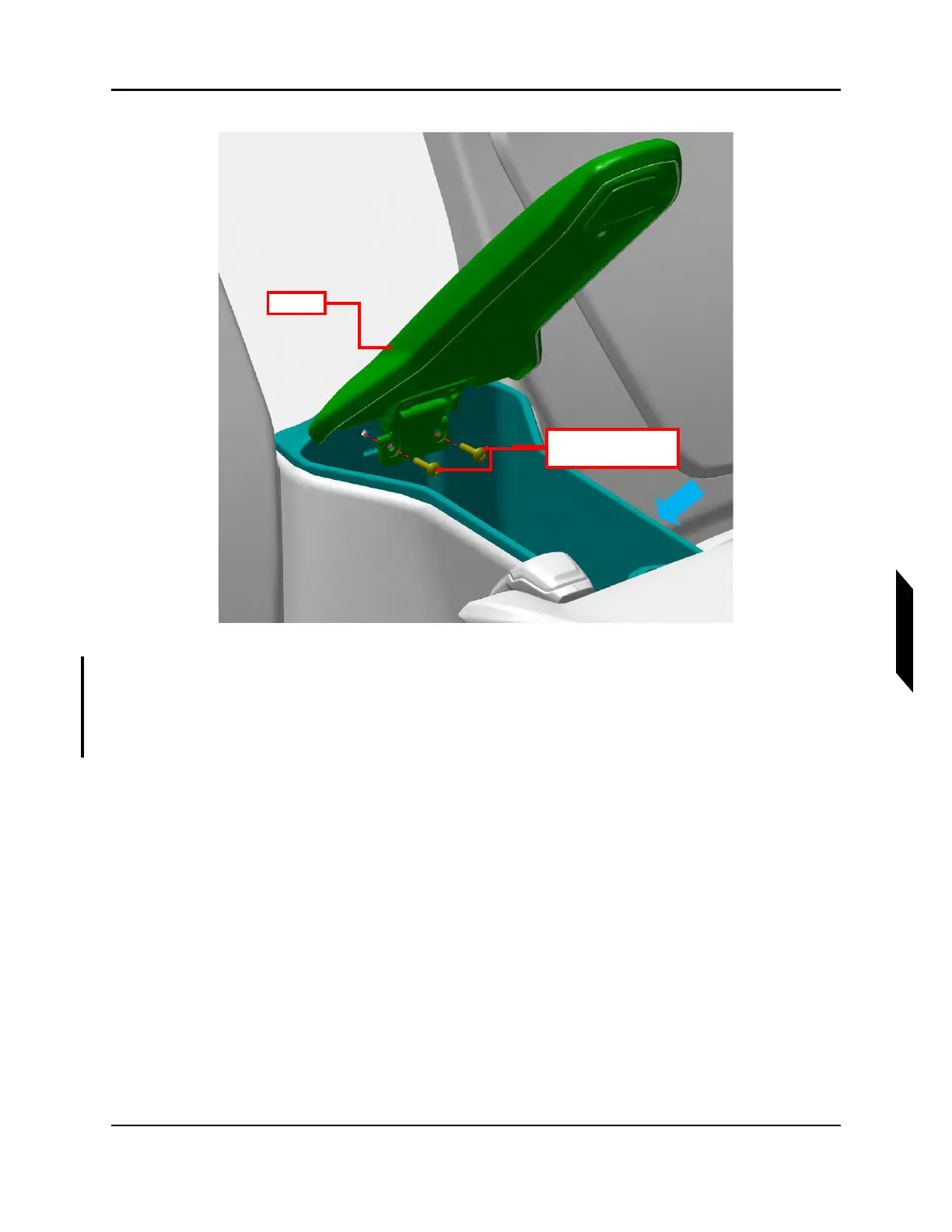

FIGURE 8-4
CENTER ARMREST SCREWS
3. Lift the center console bucket, disconnect the electrical connections and remove. Label the
wires for later installation. The connections are: cigarette lighter connectors — T9117(+) and
T9119(-); USB power connectors — T9120(-) and T9116 (+); Aux audio in jack — D9063P. See
Figure 8-5.
