9-6 FLIGHT CONTROLS / FLIGHT CONTROL SYSTEM GENERAL MAINTENANCE
ICON A5 / MAINTENANCE MANUAL CHANGE C3
CHAPTER 9
FIGURE 9-2

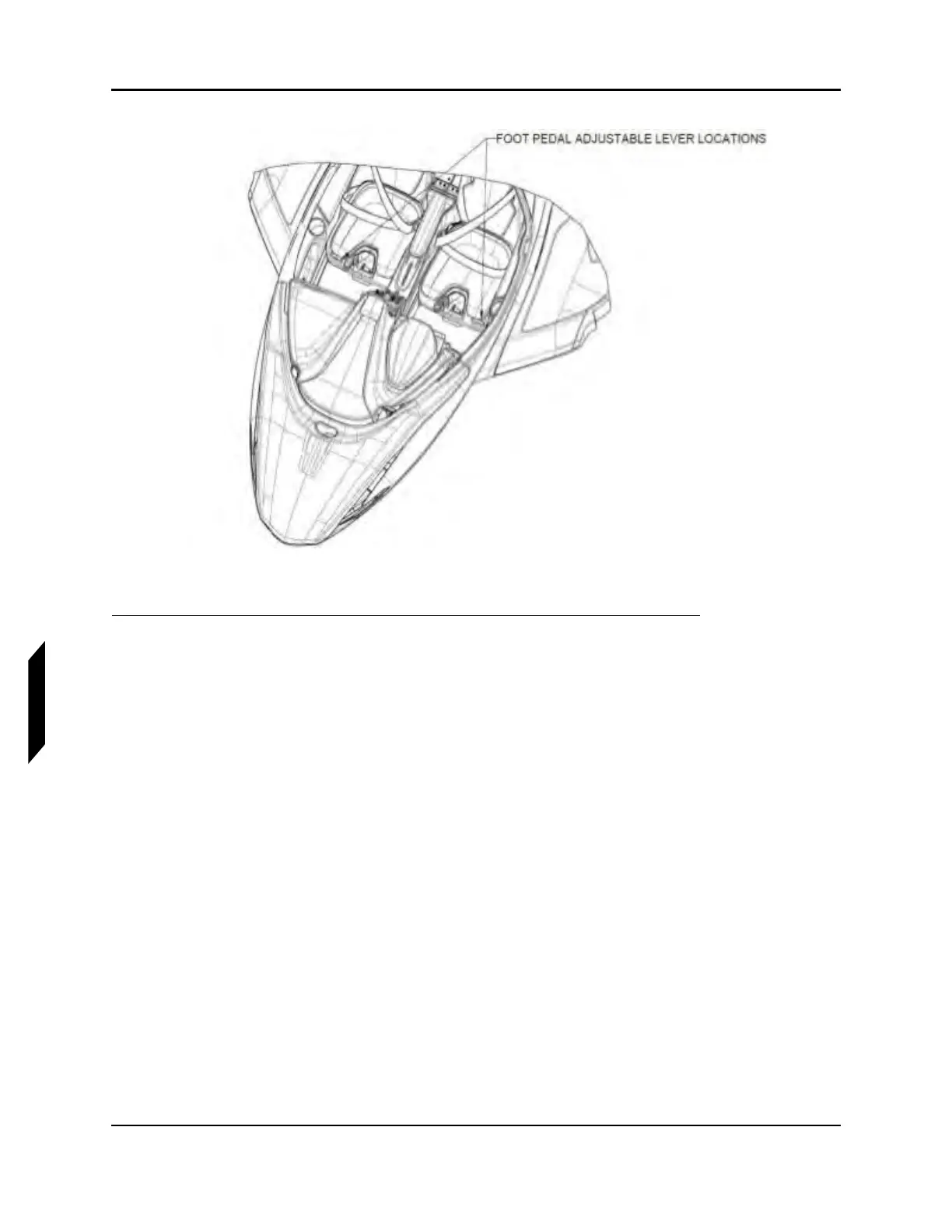

RUDDER PEDAL LATCH LOCATIONS UNDER PILOT AND CO-PILOT SEATS.
TASK INSTRUCTIONS:
1. Remove the floorboard immediately in front of the pilot seat. (See “Cockpit Floor Board Removal”
on page 3-46.)
2. Pull the lever under the seat as shown
