9-56 FLIGHT CONTROLS / PITCH TRIM ACTUATOR
ICON A5 / MAINTENANCE MANUAL CHANGE C3

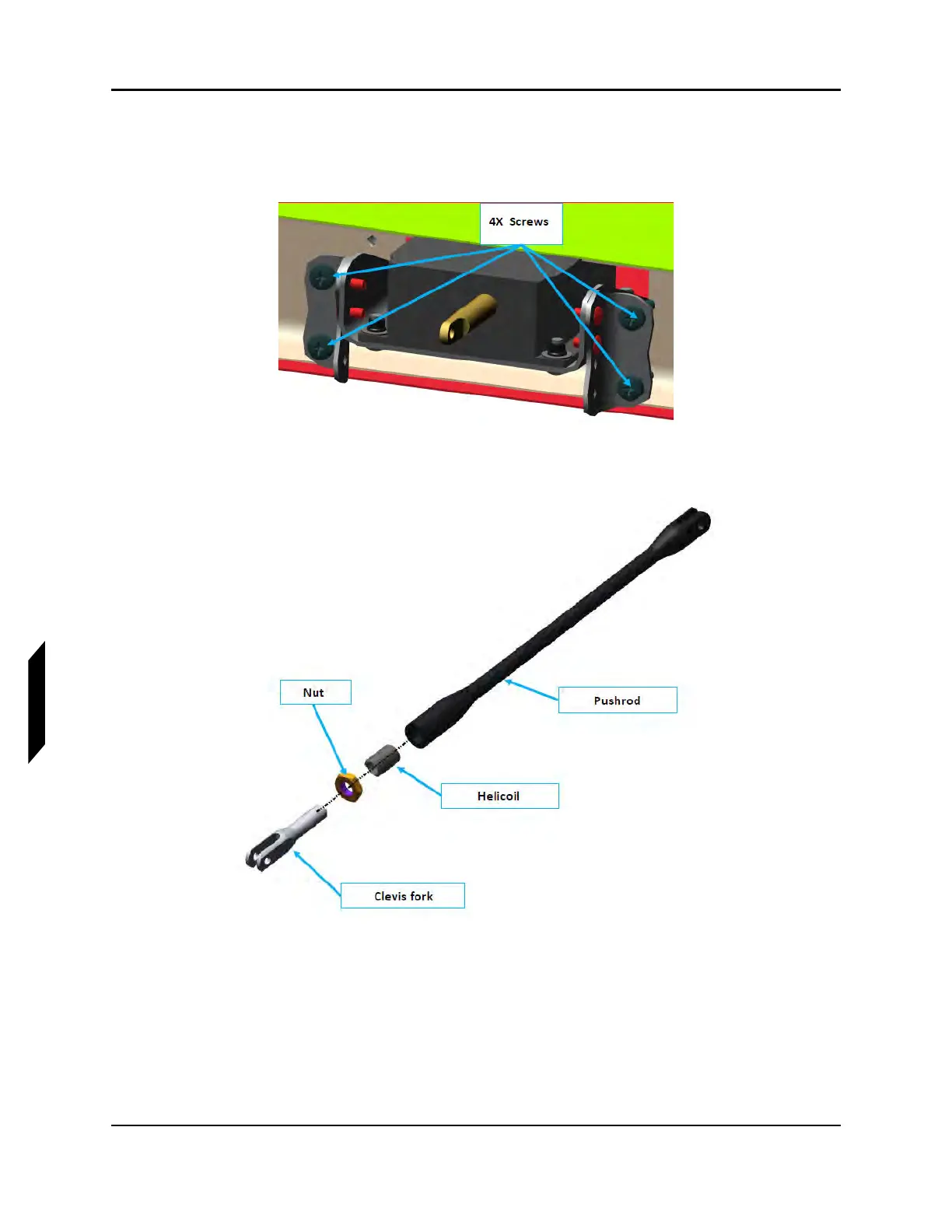

2. Install actuator and bracket back into the horizontal tail by first connecting the D9017J connector
to the D9017P connector in the horizontal tail and installing the four cross head screws as shown.
Torque to 14 in-lb
f
.
3. If pushrod needs to be replaced for wear, assemble the pushrod (ICA007117), helical coil
(1191-4CN500), jam nut (AN316C4R), and fork (ICA008302) as shown.
4. Install push rod assembly on actuator by installing clevis pin (MS20392-1R11), washer
(NAS1149CN432R), and cotter pin (MS24665-151) as shown.
