FLIGHT CONTROLS / PITCH TRIM ACTUATOR 9-57
CHANGE C3 ICON A5 / MAINTENANCE MANUAL
CHAPTER 9

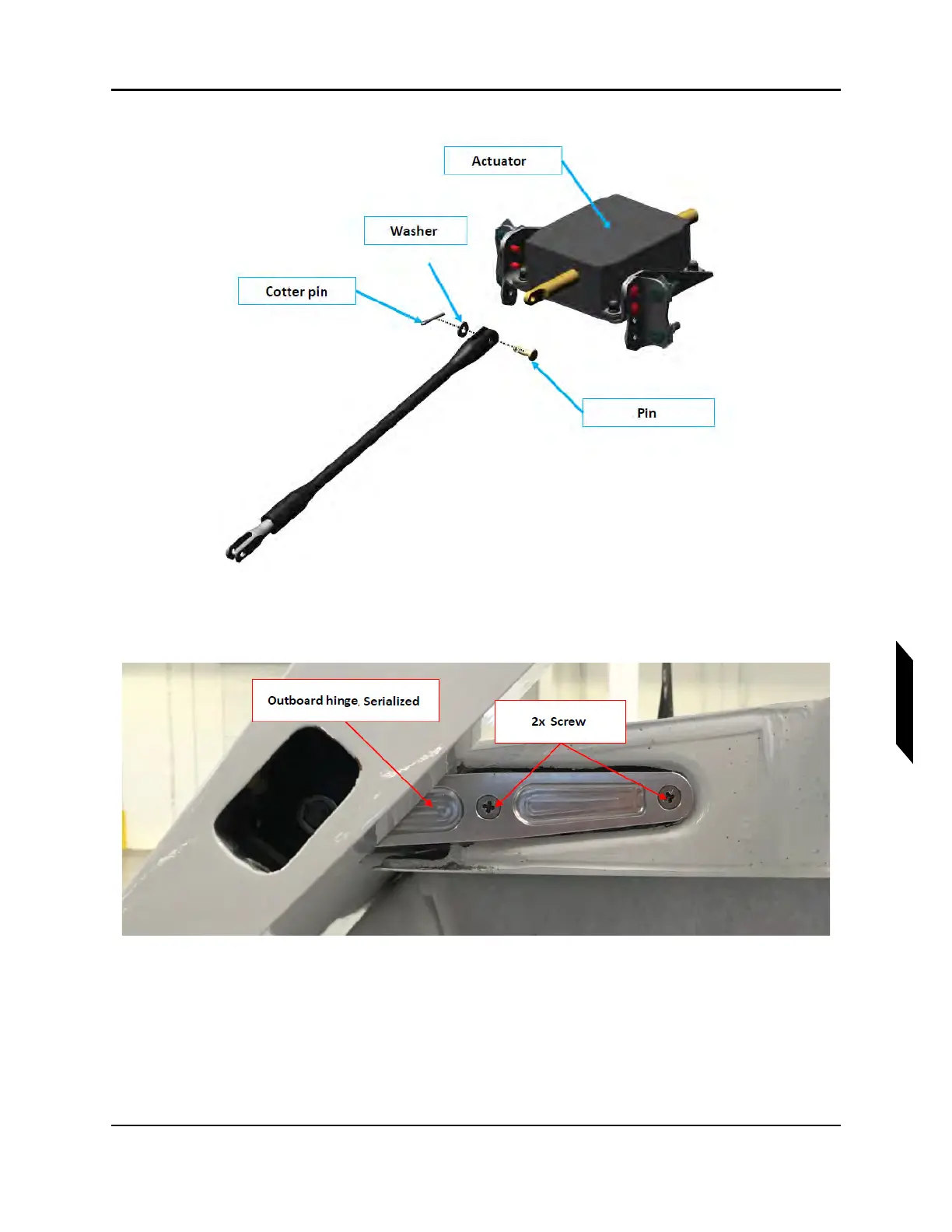

5. Install the elevator by carefully guiding the elevator trim tab pushrod through the elevator and
securing the elevator outboard hinges with four screws, (right side shown, repeat for left side).
Torque screws to 26 in-lb
f
.
6. Install elevator center hinge bolt and washer as shown. Apply Tef-Gel
®
prior to installing and
torque to 26 in-lb
f
.
