9-58 FLIGHT CONTROLS / PITCH TRIM ACTUATOR
ICON A5 / MAINTENANCE MANUAL CHANGE C3

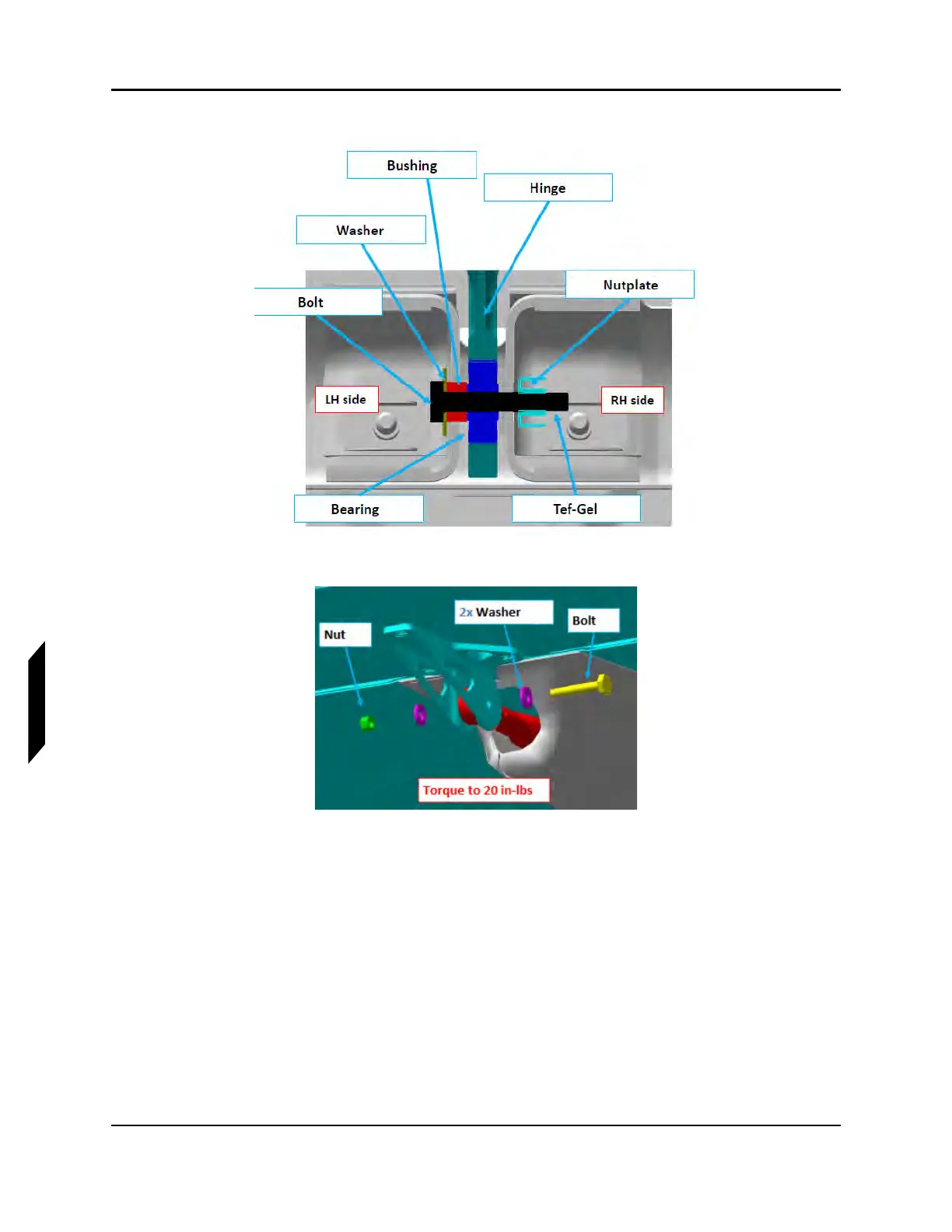

7. Install the elevator push tube rod end hardware as shown and torque to 20 in-lb
f
.
8. Connect trim tab pushrod to the trim tab, as shown, by installing the pin (MS20392-1R11), washer
(NAS1149CN432R), and cotter pin (MS24665-151). Do not bend the cotter pin until rigging in next
step is complete.
