9-72 FLIGHT CONTROLS / FLAP CONTROLS
ICON A5 / MAINTENANCE MANUAL CHANGE C3
Level of Certification
LSA-RM
Task Specific Training Required
No
Special Tools Required
None
Parts Required
None
Aircraft System and Number
06—Flight Controls
Consumables
None

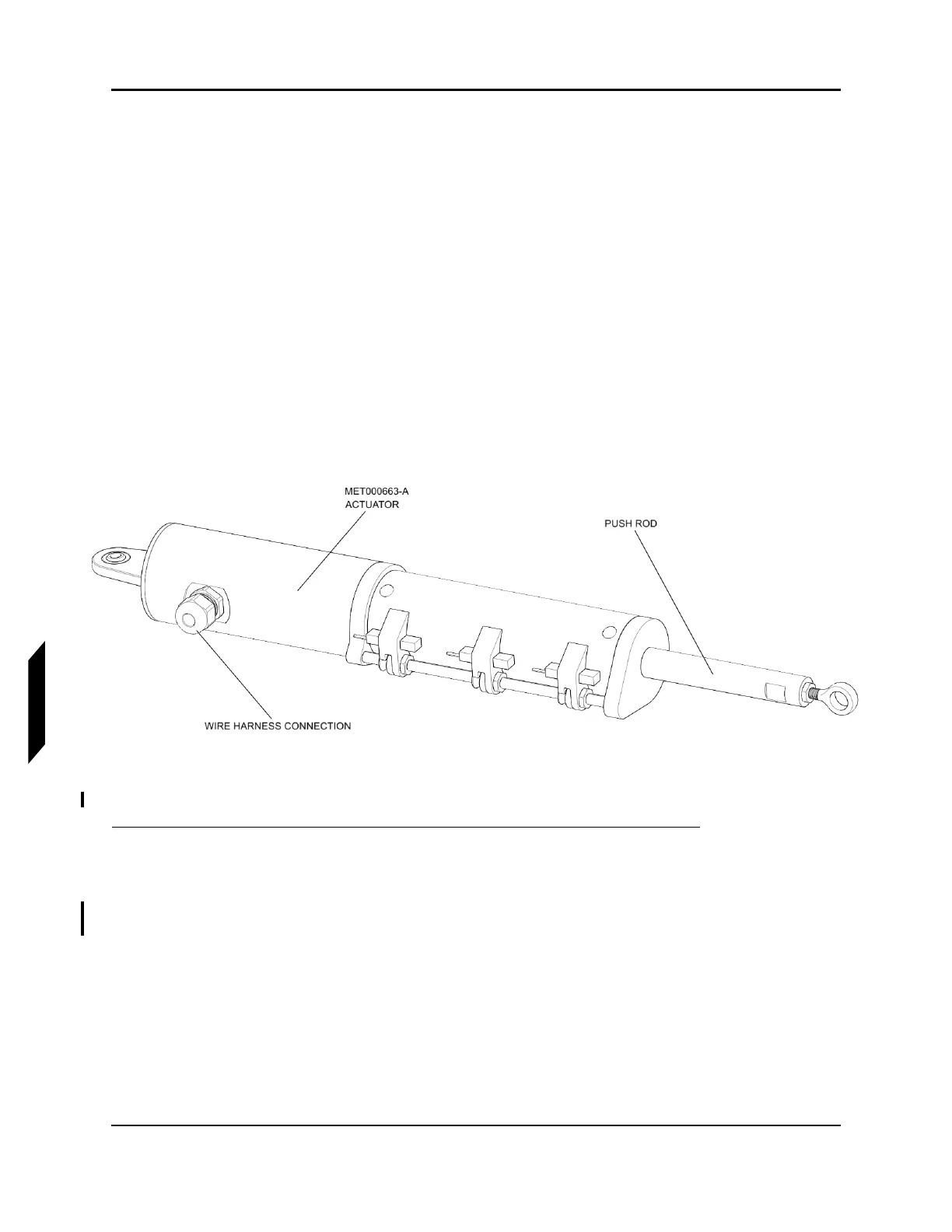

FIGURE 9-46
FLAP ACTUATOR DIAGRAM
1. Remove main bulkhead panel. (See “Removal and Installation of Inspection Panels and Fairings”
on page 3-34.)
2. Set actuator rod end position as shown. Be sure that the rod end is clocked in a way so that it will
sit in the flap bellcrank properly. Torque jam nut to 50-70 in-lbs.
