FLIGHT CONTROLS / FLAP CONTROLS 9-73
CHANGE C3 ICON A5 / MAINTENANCE MANUAL
FIGURE 9-47

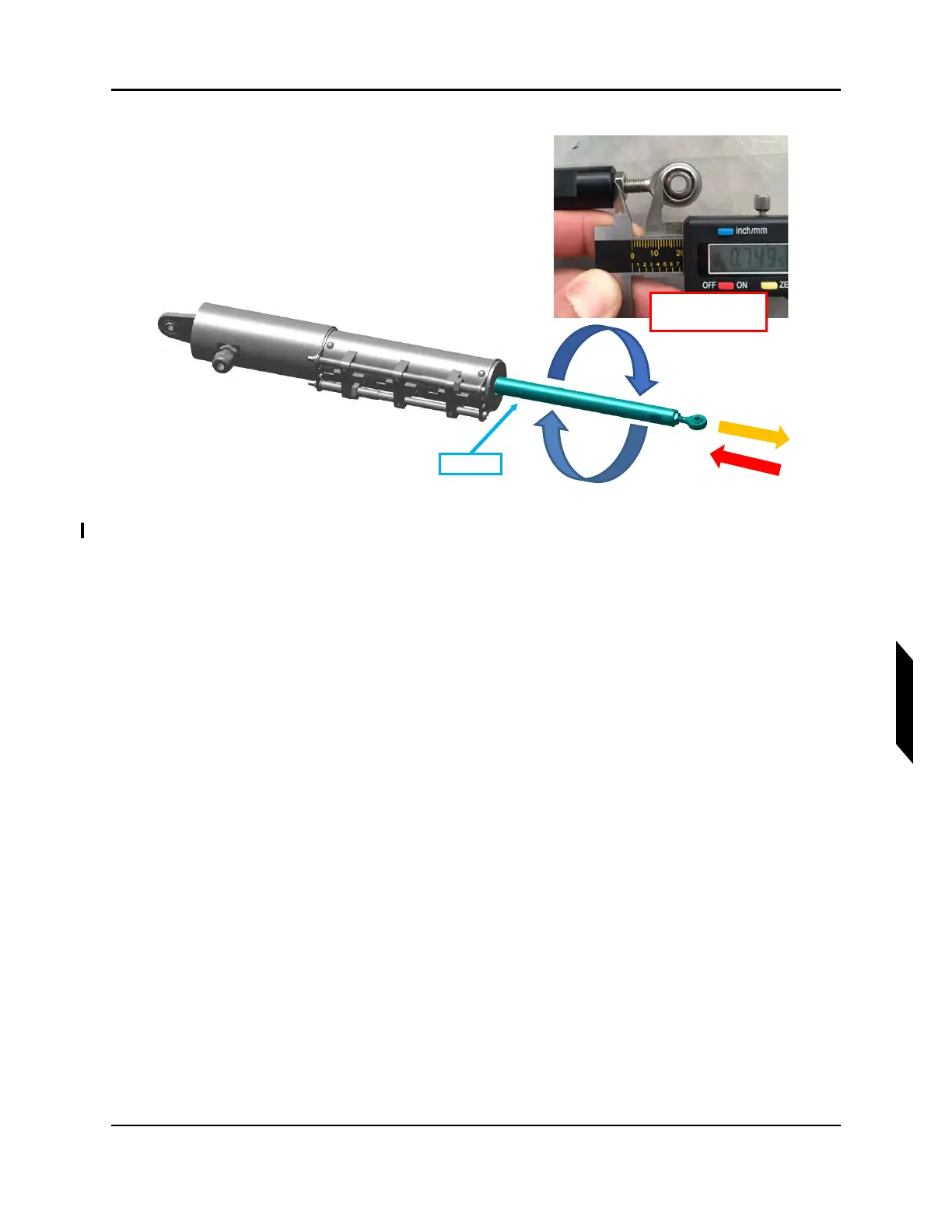

SET ACTUATOR ROD END POSITION
3. Disconnect the flap actuator from its wire harness.
4. Disconnect the flap actuator from the flap bellcrank by removing the AN4C10A bolt that fastens
them together. Retain hardware for reinstallation. (See “Removal and Installation of Inspection
Panels and Fairings” on page 3-34.)
Push Rod
Set actuator rod
end position
