FLIGHT CONTROLS / YAW CONTROLS 9-81
CHANGE C3 ICON A5 / MAINTENANCE MANUAL

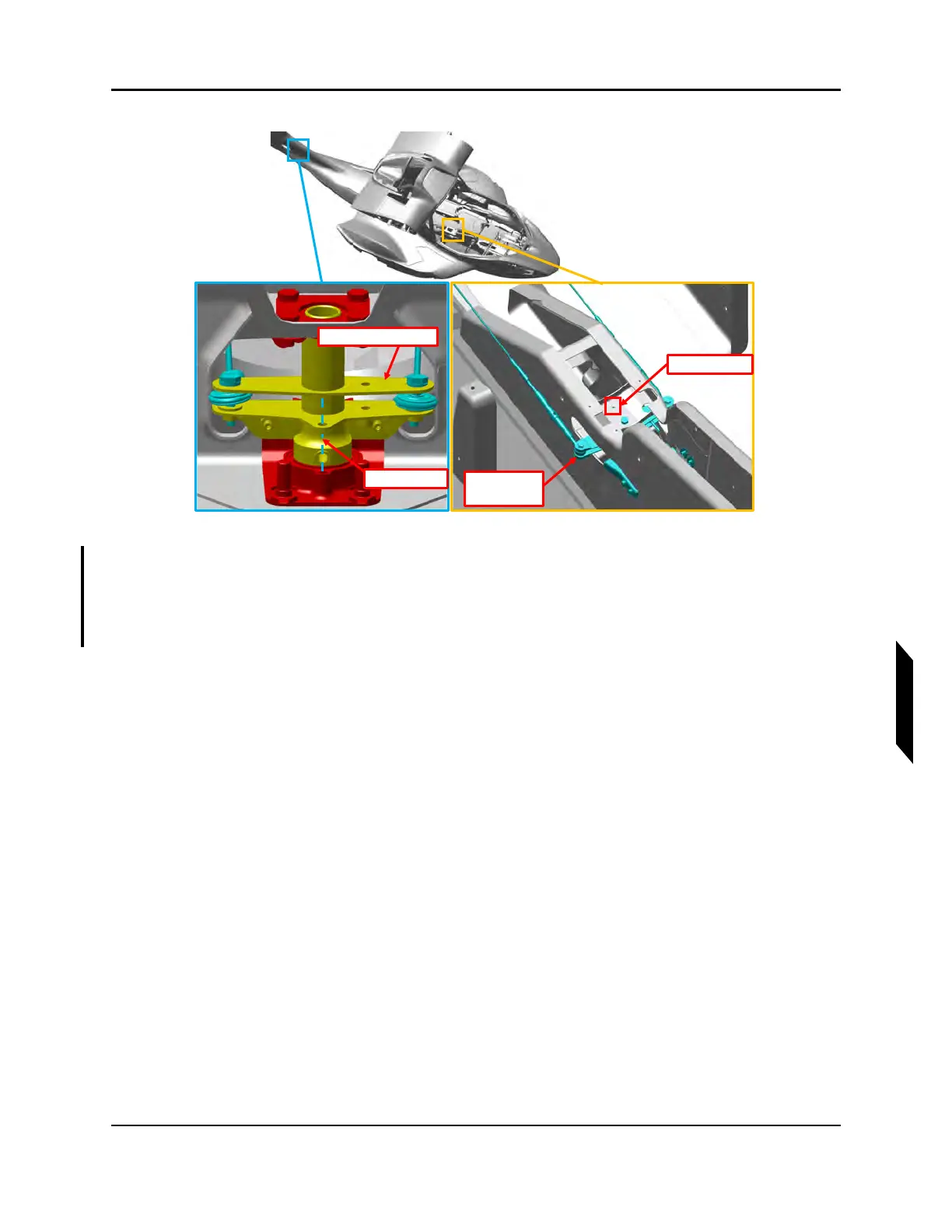

FIGURE 9-51
FWD YAW BELLCRANK AND WATER RUDDER RIG PIN LOCATIONS
5. From within the AFT Bulkhead Baggage Access Window, use a tensiometer (cable thickness =
1/8 in) to measure rudder cable tension. Refer to Figure 9-52. Ensure they all are within 18-22 lb
f
of tension. Refer to the manufacturers’ calibration card to correctly read cable tension for the
cable diameter.
Water Rudder Bellcrank
Rig Pin Location
Forward Yaw
Bellcrank
Rig Pin Location
To Next Page
