ICON A5 - Page 327

FLIGHT CONTROLS / YAW CONTROLS 9-91
CHANGE C3 ICON A5 / MAINTENANCE MANUAL
CHAPTER 9

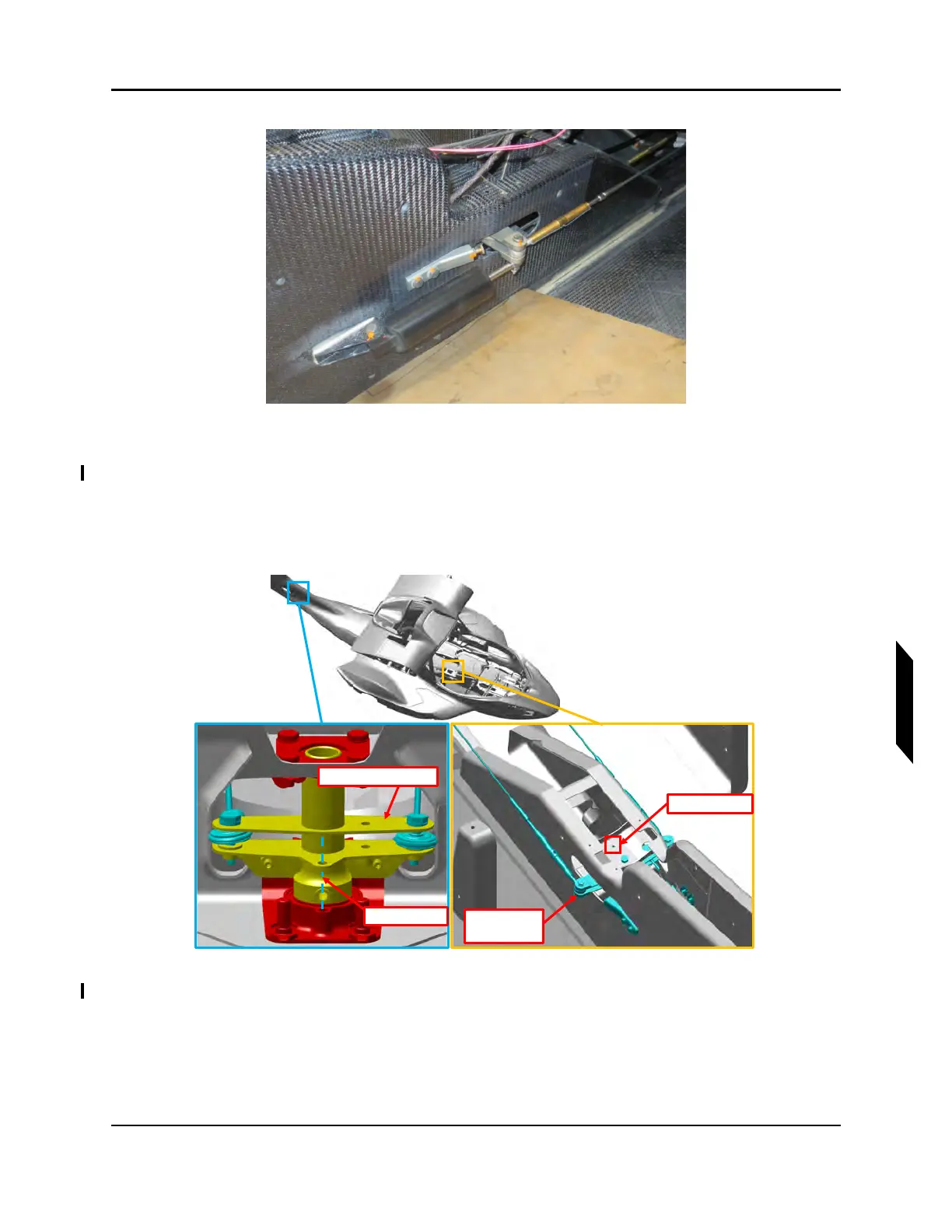

FIGURE 9-55
RUDDER RETURN SPRING
11. Install two .375 in diameter rig pins through the keel in the Yaw Torque Tube Rig Pin holes.
NOTE: Ensure rig pin extends the entire width of the keel, through both
holes in the keel.
FIGURE 9-56
FWD YAW BELLCRANK AND WATER RUDDER RIG PIN LOCATIONS
Water Rudder Bellcrank
Rig Pin Location
Forward Yaw
Bellcrank
Rig Pin Location
