9-104 FLIGHT CONTROLS / YAW CONTROLS
ICON A5 / MAINTENANCE MANUAL CHANGE C3
CHAPTER 9

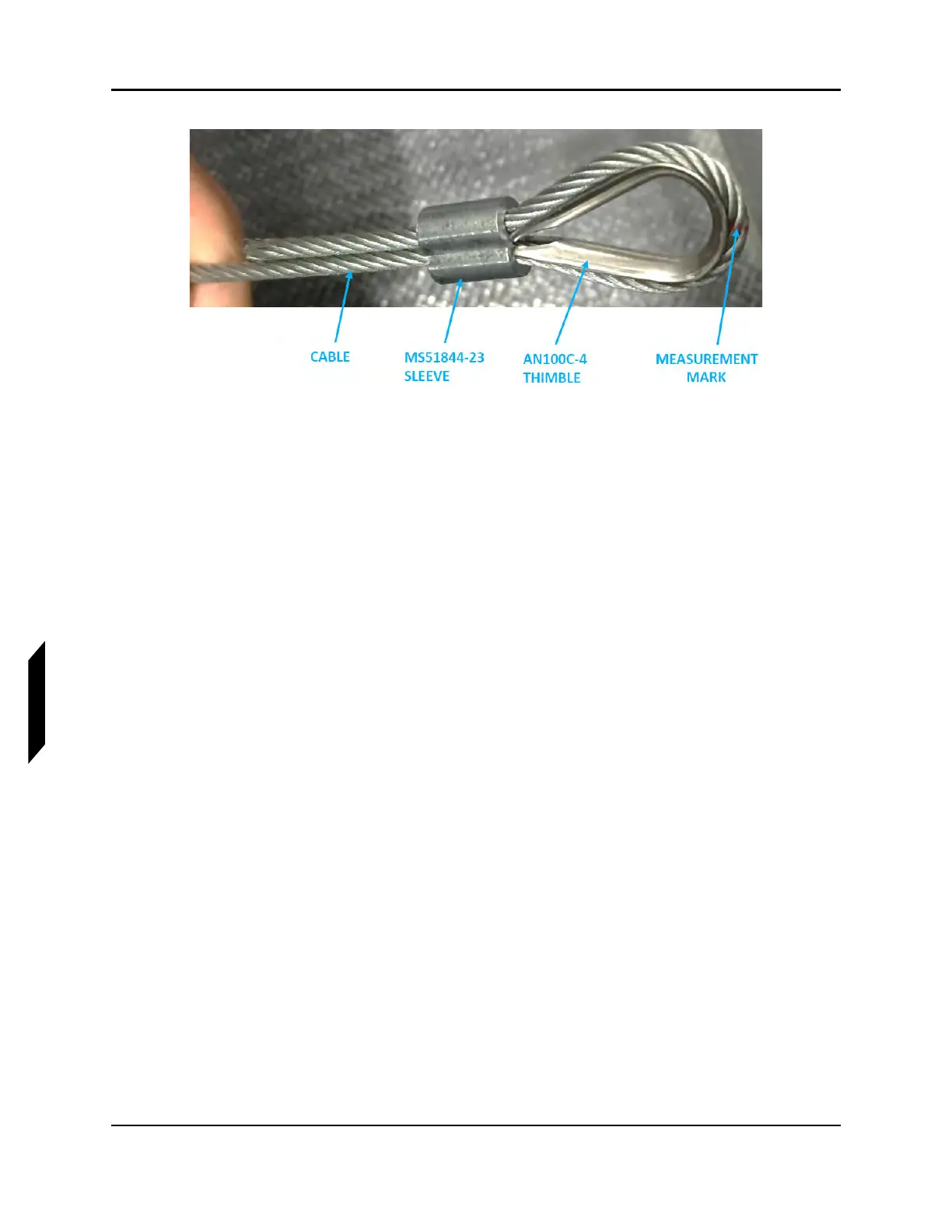

FIGURE 9-65
RUDDER PEDAL CABLE SWAGE
2. With the rudder pedals in the middle position and rudder pedal arms 90° ± 1° relative to the rudder
rails, route cable through the rudder arm “S” tube, sleeve, and cable.
NOTE: Do not swage sleeve in this step.
3. Temporarily install the cable to the forward rudder rail mount. Install cable to the rudder pedal
turnbuckles, set turnbuckles to the mid position of adjustment.
4. Remove slack from rudder pedal cables while maintaining 90° ± 1° at the rudder pedal arms. Mark
the rudder cables.
5. Uninstall cable from the forward rudder rail mount.
6. Ensure the mark created in Step 4 is in the correct location.
7. Swage MS51844-23 sleeve.
8. Install the rudder pedal cables.
