10-18 FUEL SYSTEM / FUEL TANK (MY18+)
ICON A5 / MAINTENANCE MANUAL CHANGE C2

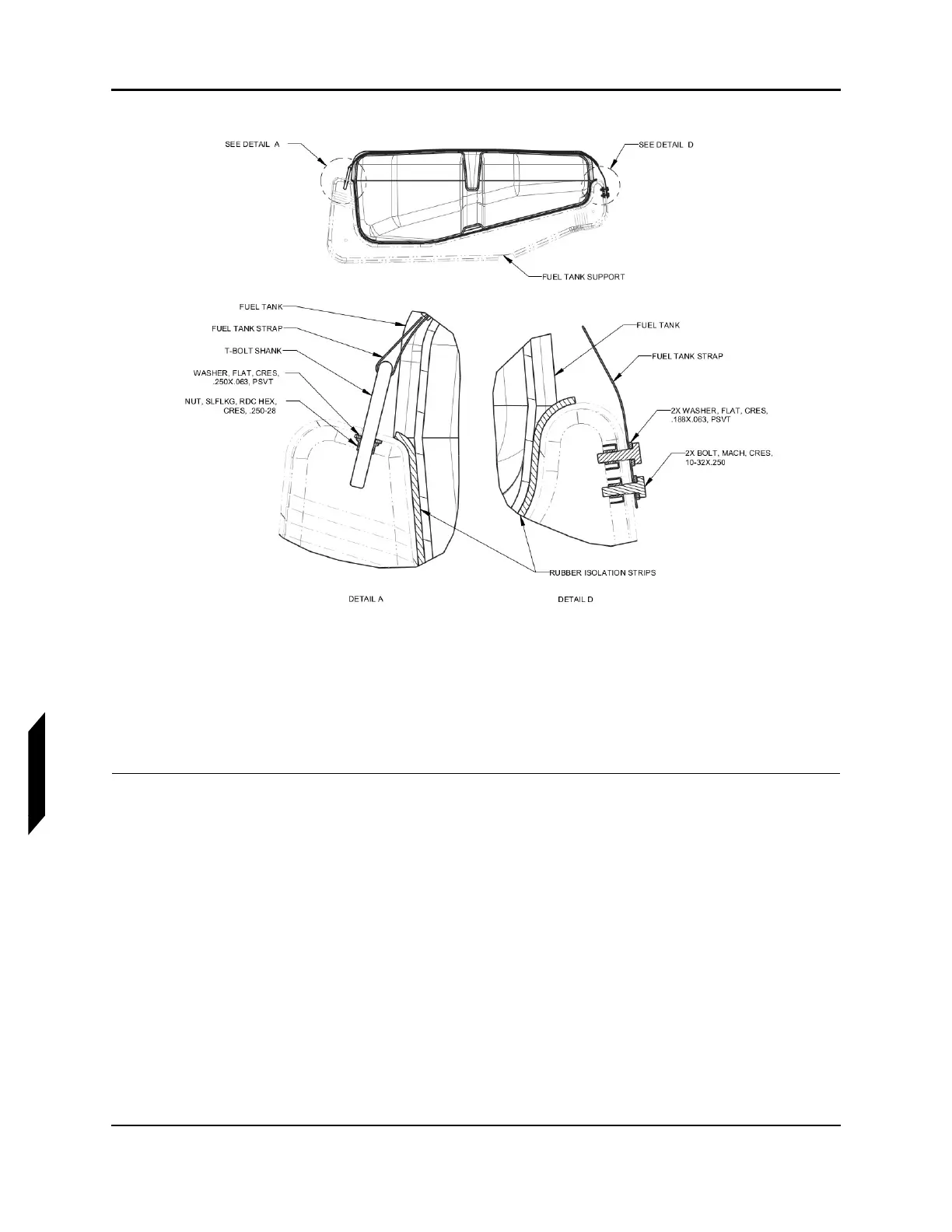

FIGURE 10-4
FUEL TANK STRAP INSTALLATION
19. Remove two bolts and washers securing the fuel tank straps to the aft end of fuel tank. (See
Figure 10-4. Detail D.)
20. Remove both fuel tank straps.
21. Lift fuel tank subassembly out of the aircraft.
VERIFICATION METHOD:
Task is complete when the fuel tank has been removed from the aircraft.
