HORIZONTAL TAIL / HORIZONTAL TAIL GENERAL MAINTENANCE 12-7
CHANGE C1 ICON A5 / MAINTENANCE MANUAL
CHAPTER 12
FIGURE 12-2

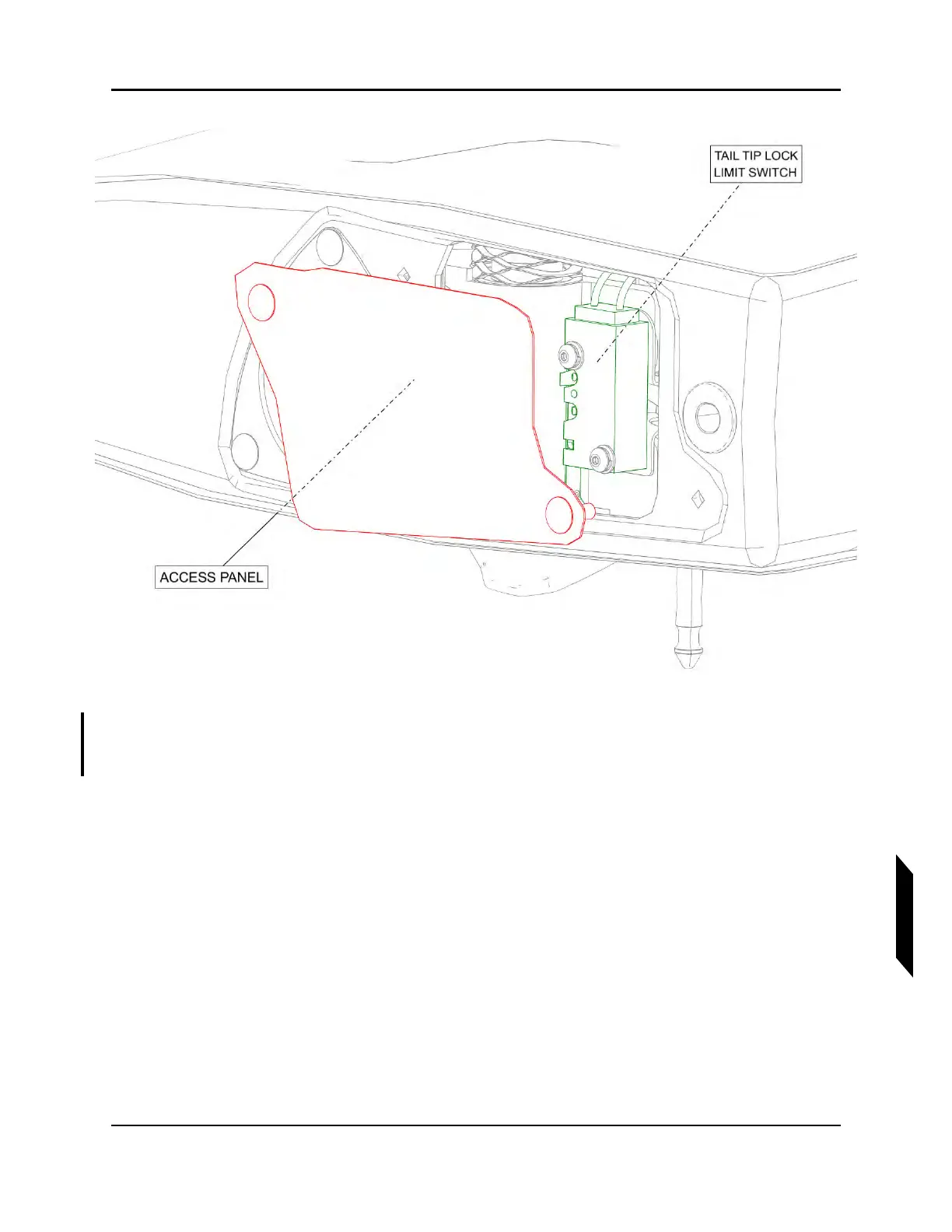

REMOVE HORIZONTAL TAIL TIP ACCESS PANEL (LH SHOWN, RH OPPOSITE)
2. Remove the 4 screws, washers, and nuts securing limit switches. Set aside for installation. (See
Figure 12-3.)
