CHANGE C2 ICON A5 / MAINTENANCE MANUAL
CHAPTER 13

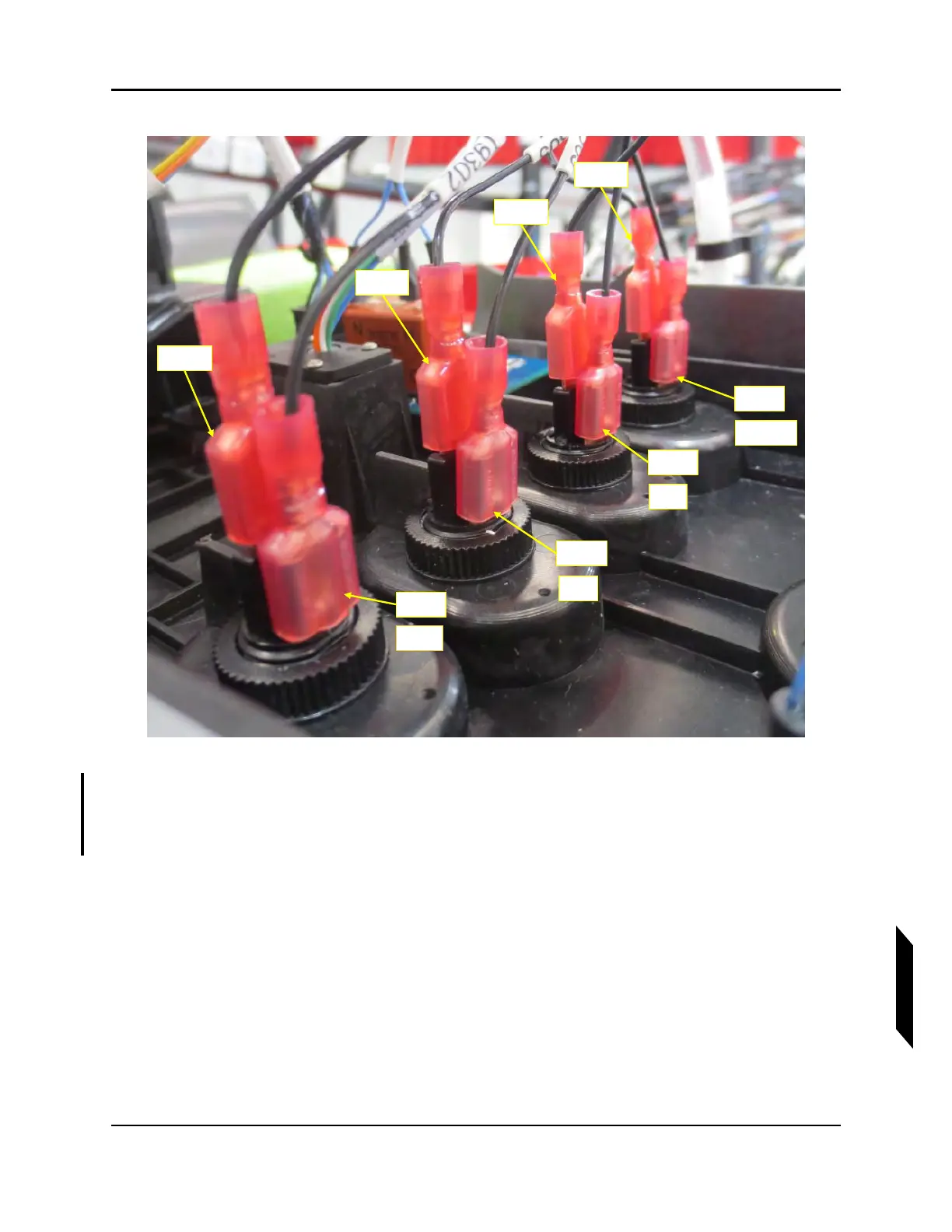

FIGURE 13-6
CENTER STACK WIRE HARNESS
2. Access the instruments and switches listed in the following table. (See “Center Console Bucket
Removal” on page 8-5.)The following table details the connections for instruments located in the
Center Console Bucket.
LAND
TAXI
NAV
STROBE
T9302
T9303
T9300
T9301
T9304
T9305
T9308
T9307
