13-46 INSTRUMENTS (AND AVIONICS) / ELT
ICON A5 / MAINTENANCE MANUAL CHANGE C2
CHAPTER 13
7. Inspect according to Section 10 of ACK Technologies Inc. Model E-04 ELT Installation/Opera-
tion Manual.
NOTE: The ELT unit consists of a battery case and the ELT transmitter
assembly.
8. Remove the battery case from the ELT transmitter assembly according to Section 11 of ACK
Technologies Inc. Model E-04 ELT Installation/Operation Manual.
9. Verify the battery case contacts are not corroded.
10. Verify the ELT transmitter assembly contacts are not corroded.
11. Reattach the battery case to the ELT transmitter assembly according to Section 11 of ACK Tech-
nologies Inc. Model E-04 ELT Installation/Operation Manual.

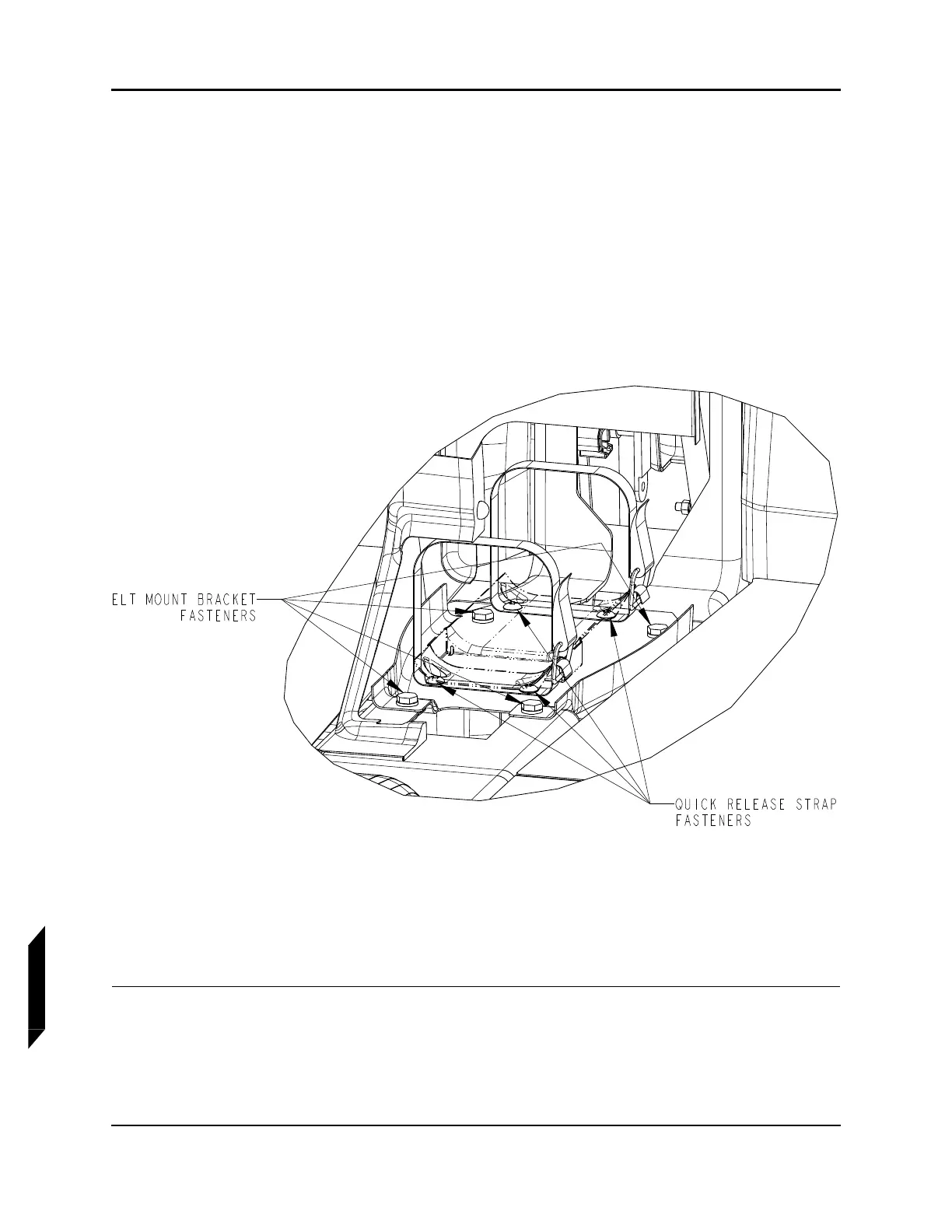

12. Verify the fasteners of the quick release straps are secure.
13. Reinstall the ELT unit into the aircraft according to Step 7 of Section 9 of ACK Technologies Inc.
Model E-04 Installation/Operation Manual.
14. Verify the latches of the quick release straps are closed.
15. Verify the arrow graphic of ELT unit is on top and points forward.
16. Perform ELT unit self-test according to SELF TESTS of Section 9 of ACK Technologies Inc.
Model E-04 ELT Installation/Operation Manual, or See “ELT Battery Self Test” on page 13-47.
VERIFICATION METHOD:
Inspection is verified if all ELT functional checks pass.
