PROPULSION / ENGINE 16-7
CHANGE C2 ICON A5 / MAINTENANCE MANUAL
CHAPTER 16

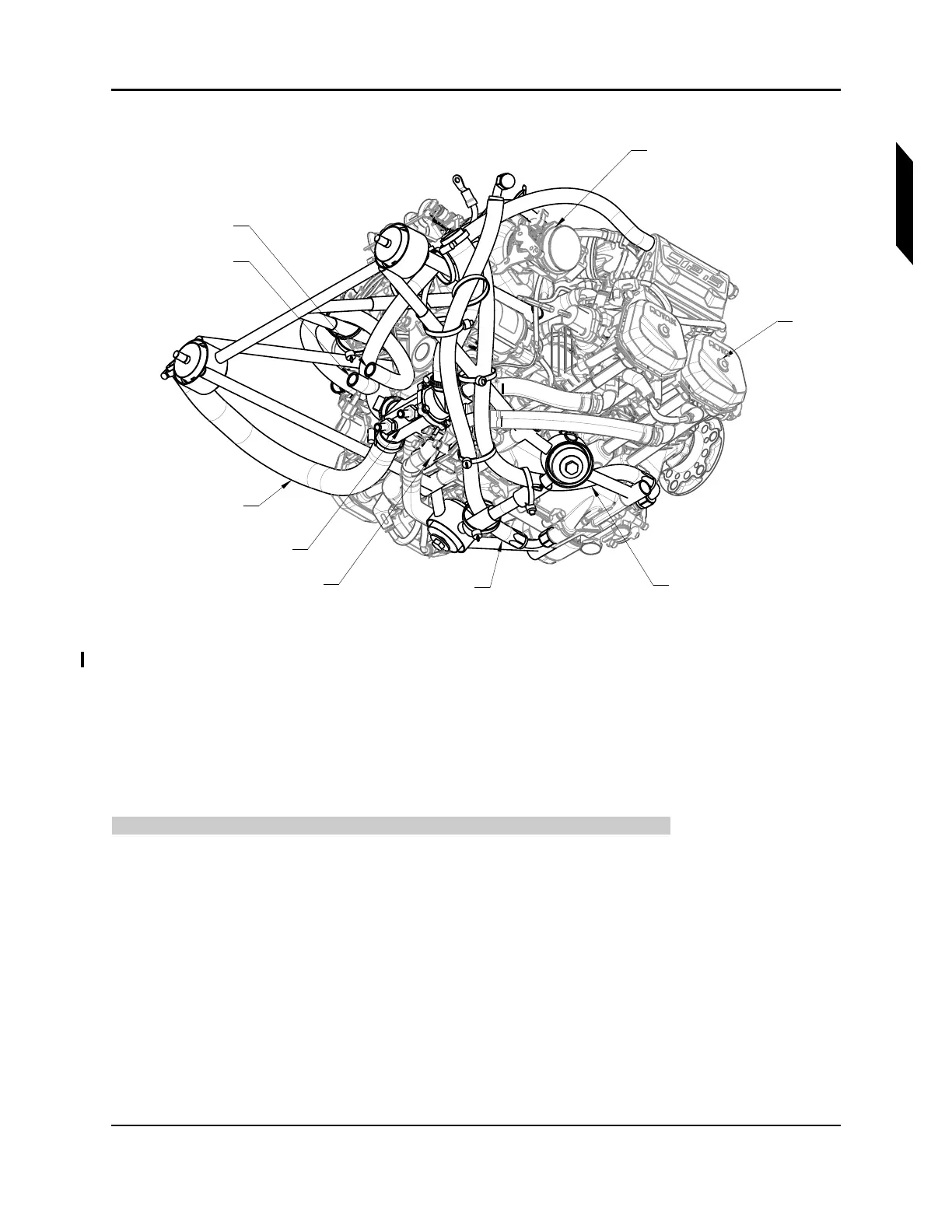

FIGURE 16-3
VIEW LOOKING UP, FWD, RHS (ENGINE HARNESS NOT SHOWN)
16.1.3 Troubleshooting
16.1.3.1 Engine Test Run
Instructions to perform a test run on the Rotax 912 iS Sport (912 i S 2) engine.
TASK INFORMATION:
Type of Maintenance
Line
Level of Certification
Owner/Pilot
Task Specific Training Required
No
Special Tools Required
None
CYL.1
FUEL RETURN LINE
FUEL SUPPLY LINE
THERMOSTAT-RADIATOR
INLET COOLANT HOSE
ENGINE-TANK
OIL HOSE
COOLANT THERMOSTAT
WATER PUMP
THERMOSTAT-ENGINE
OIL HOSE
THROTTLE BODY
