16-14 PROPULSION / ENGINE
ICON A5 / MAINTENANCE MANUAL CHANGE C2

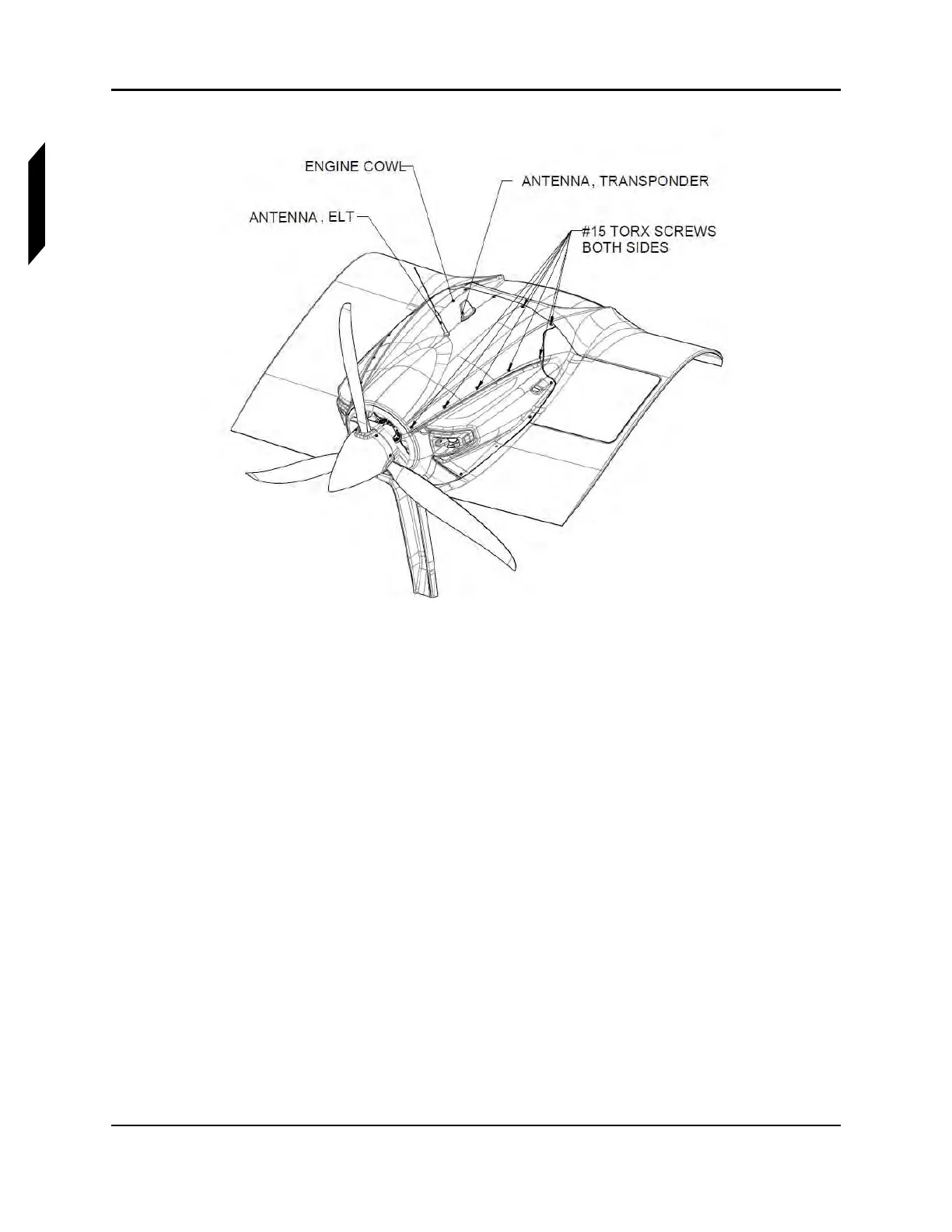

FIGURE 16-4
REMOVING TOP ENGINE COWL
2. Lift the cowl upward.
3. Disconnect the ELT and transponder antennas from the electrical harness by disconnecting the
coax connectors from the inside of the cowl. Remove cowl completely.
4. Remove the LHS and RHS muffler fairing with the tail pipe bezel by removing nine Torx button
head screws using a #20 Torx driver. (See Figure 16-5.)
