16-36 PROPULSION / ENGINE
ICON A5 / MAINTENANCE MANUAL CHANGE C2

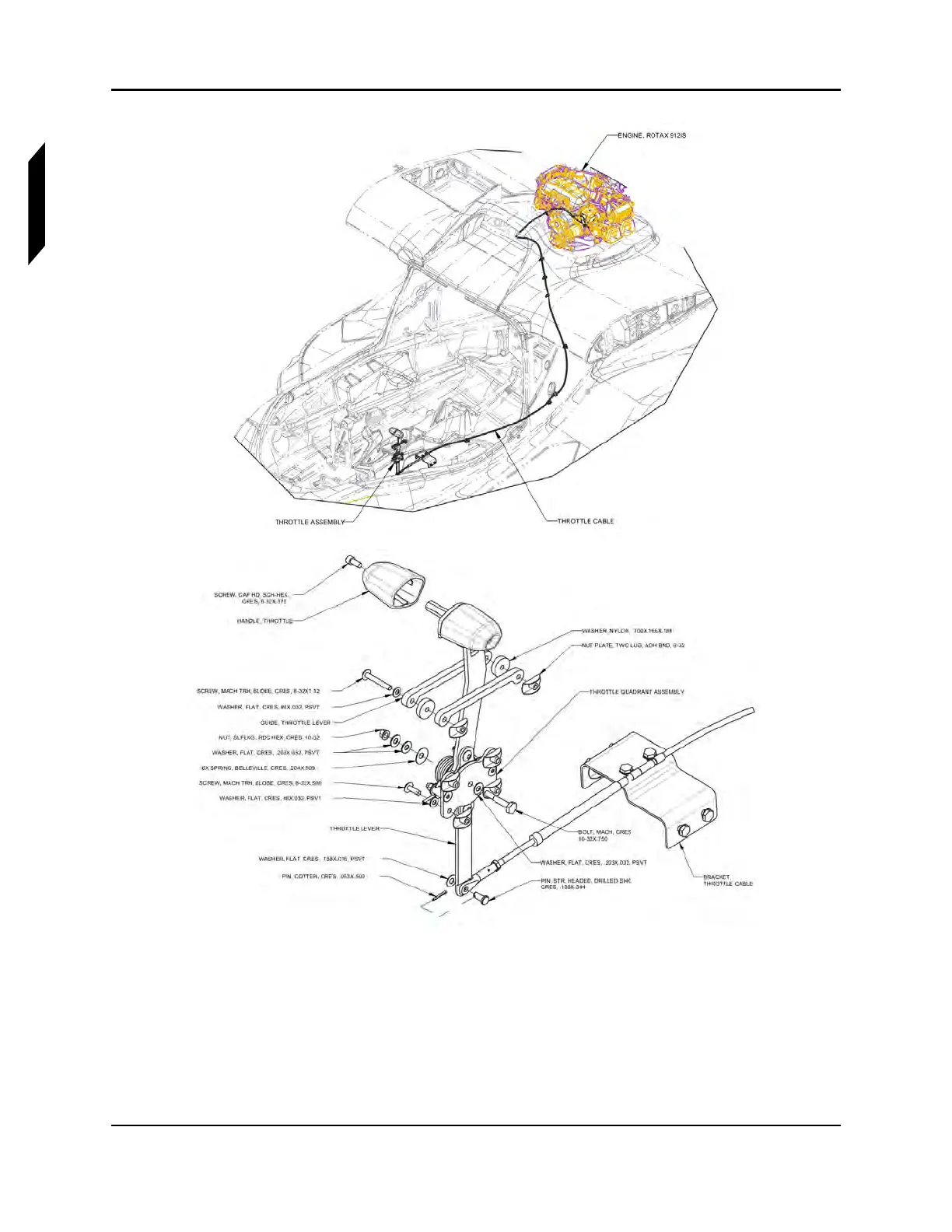

FIGURE 16-21
THROTTLE ASSEMBLY—EXPLODED VIEW.
NOTE: ASN 49 and below use a different THROTTLE CABLE BRACKET
than shown.
2. Remove throttle bezel. (See “Throttle Handle and Bezel Removal” on page 8-10.)
3. Have a helper in the cockpit move the throttle forward and backward to confirm if the cable is
clear and free to move.
