PROPULSION / ENGINE 16-37
CHANGE C2 ICON A5 / MAINTENANCE MANUAL
4. Check that the throttle cable is secured and connected appropriately to throttle lever. (See
Figure 16-21.See Figure 16-24.)
5. Clear and remove any obstructions that would prevent cable from moving.
6. Check in the idle position that the throttle lever has at least 0.50 inches of clearance to full travel.
• In cockpit, retract throttle handle to contact AFT stop (idle position). At engine, ensure
lever idle stop contacts idle adjustment screw at the same time or just before the throttle
handle contacts the aft stop. (See Figure 16-22.)

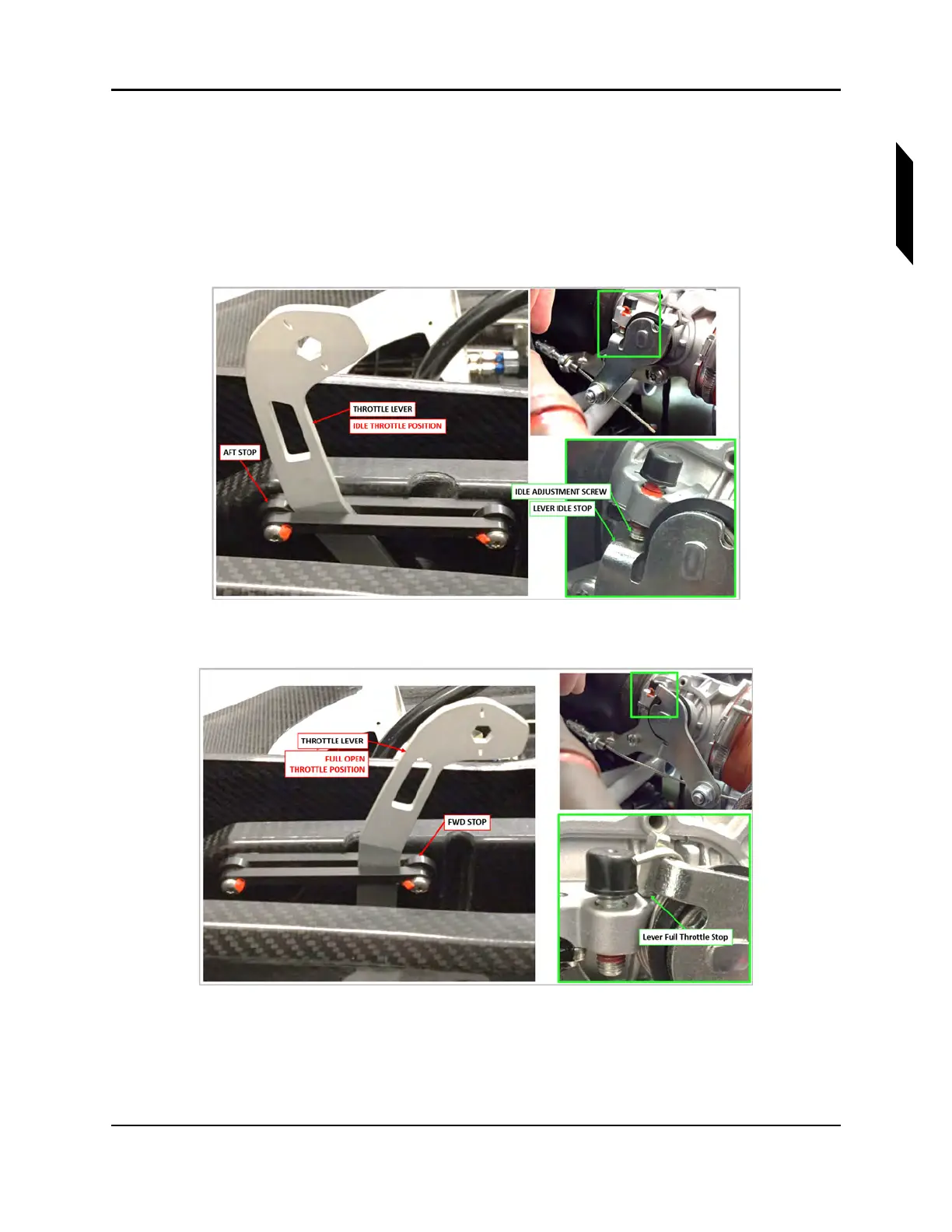

FIGURE 16-22
IDLE POSITION ADJUSTMENT
FIGURE 16-23
FULL THROTTLE POSITION ADJUSTMENT
