PROPULSION / ENGINE 16-81
CHANGE C2 ICON A5 / MAINTENANCE MANUAL
CHAPTER 16
LSA-RM
Task Specific Training Required
No
Special Tools Required
None
Parts Required
None
Aircraft System and Number
13—Propulsion
Consumables
Parker O-lube
LOCTITE
®
243™
TASK INSTRUCTIONS:

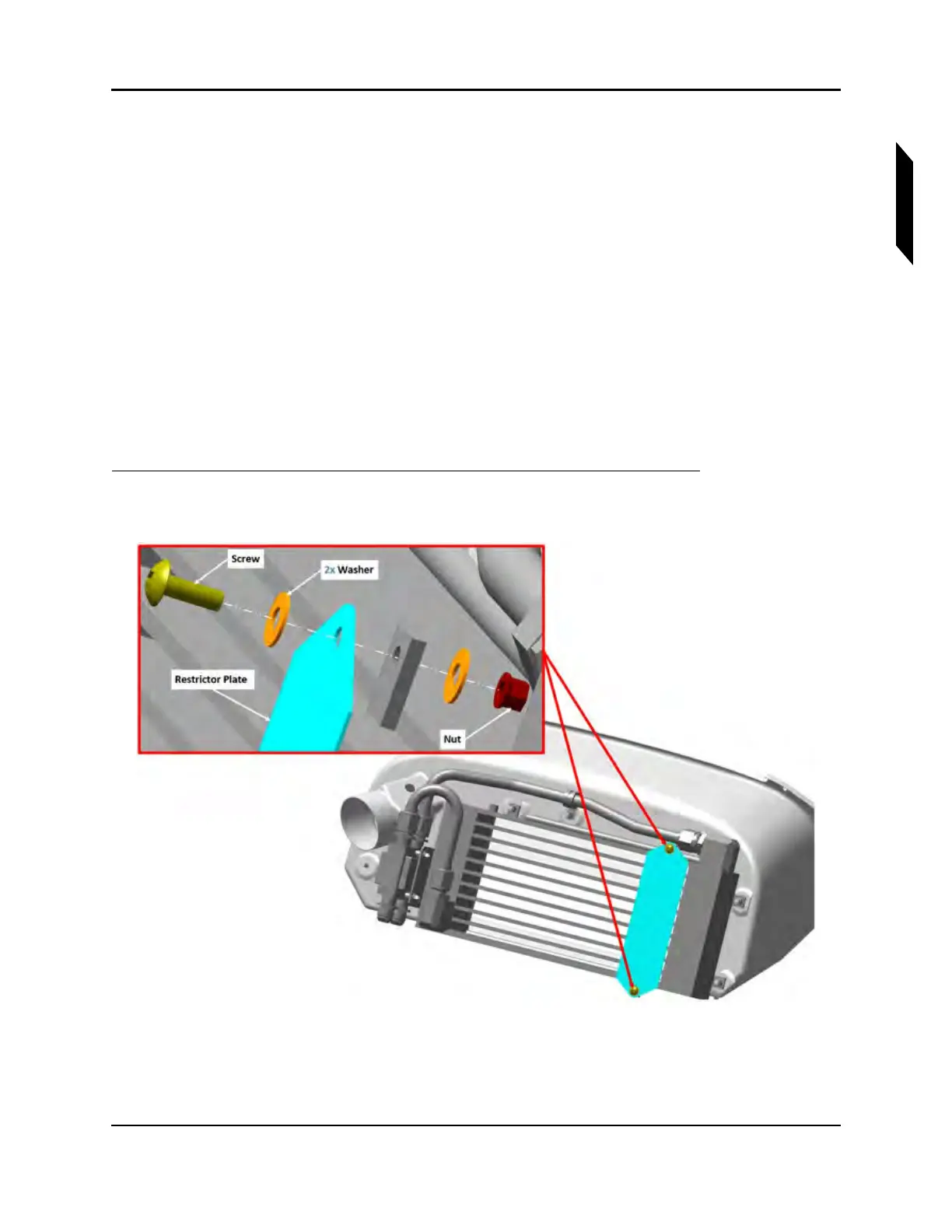

1. Install the restrictor plate as shown. Torque fasteners to 13 in-lb
f
.
2. Lubricate two 9752K118 (.644 ID x .087 w, #908) Viton™ o-rings with Parker O-lube.
3. Install one o-ring on each of the two AN815-8D union fittings and thread a fitting into the oil cooler
inlet and outlet so that the o-rings seal against the cooler. Torque each to 200±50 in-lb
f
.
